Throttle Position (TP) Sensor Removal and Installation: Installation

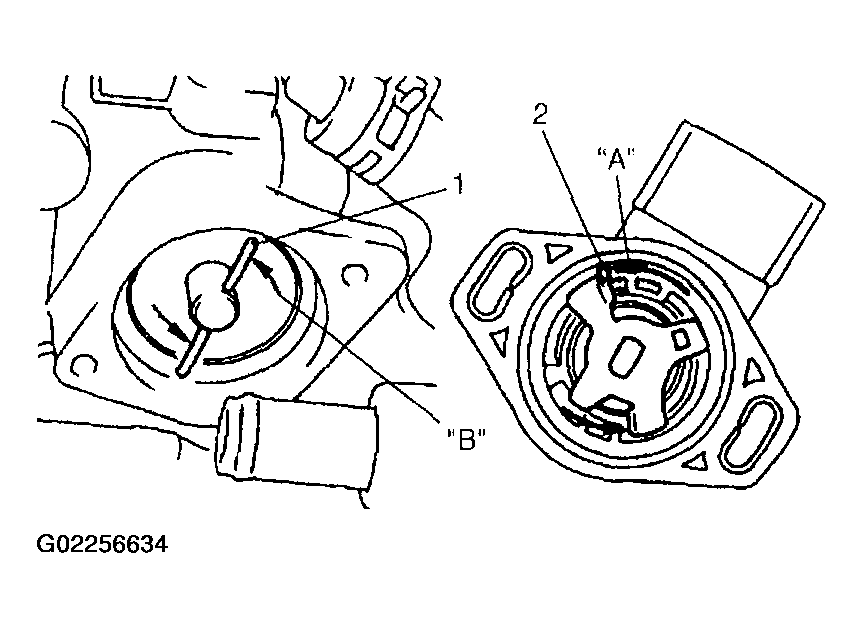

- To install sensor, place it onto throttle body so that sensor pickup lever (2) can engage with throttle body lever (1). "A" should engage with "B".
- Hand-tighten TP sensor screws.
- Connect connector to TP sensor securely.
- Connect battery negative cable to battery.
- Adjust installation angle of TP sensor referring to "THROTTLE POSITION (TP) SENSOR ADJUSTMENT ".
