Compressor HVAC: Testing and Inspection

Compressor Inspection

Reference: Compressor Removal and Installation:Manual Type




Check magnet clutch operation and specified current as follows:

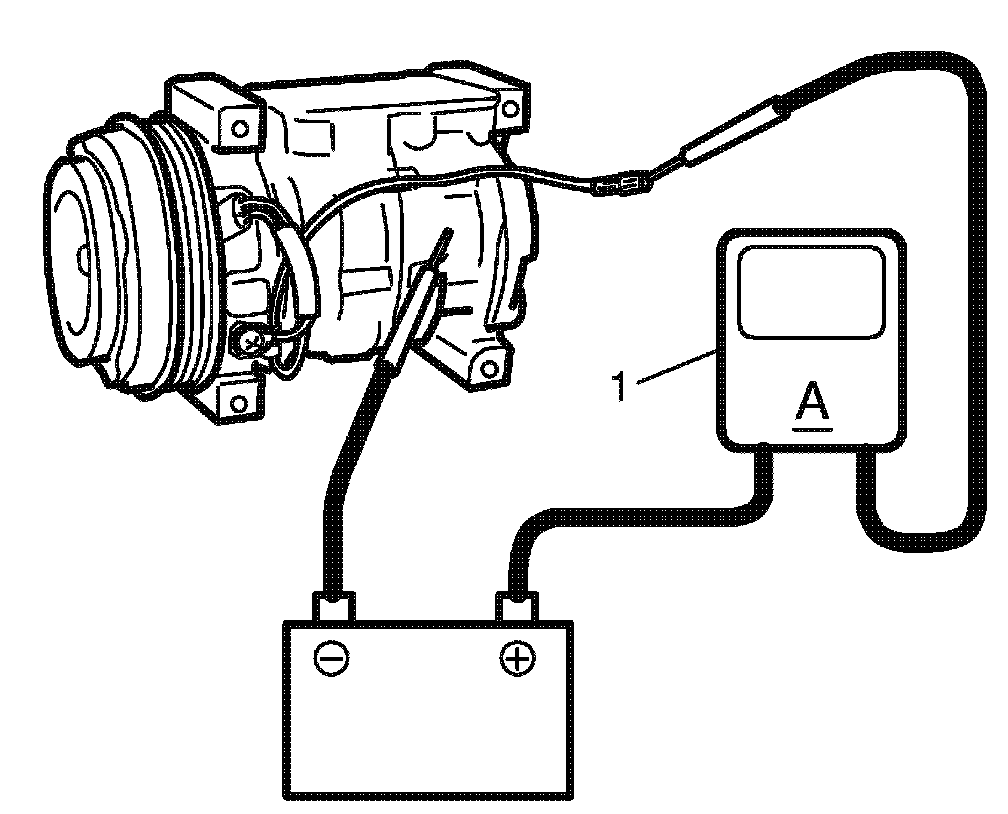

1. Connect battery and ammeter (1) to magnet clutch, and then check for magnet clutch operation with "click" sound.
2. Check that ammeter (1) indicates specified current.
If indicated current is without current, replace magnet clutch assembly.

Reference: Magnet clutch specified current at 12 V: 3 A maximum
