A/C Signal Circuits Inspection

A/C Signal Circuits Check (Vehicle with A/C)

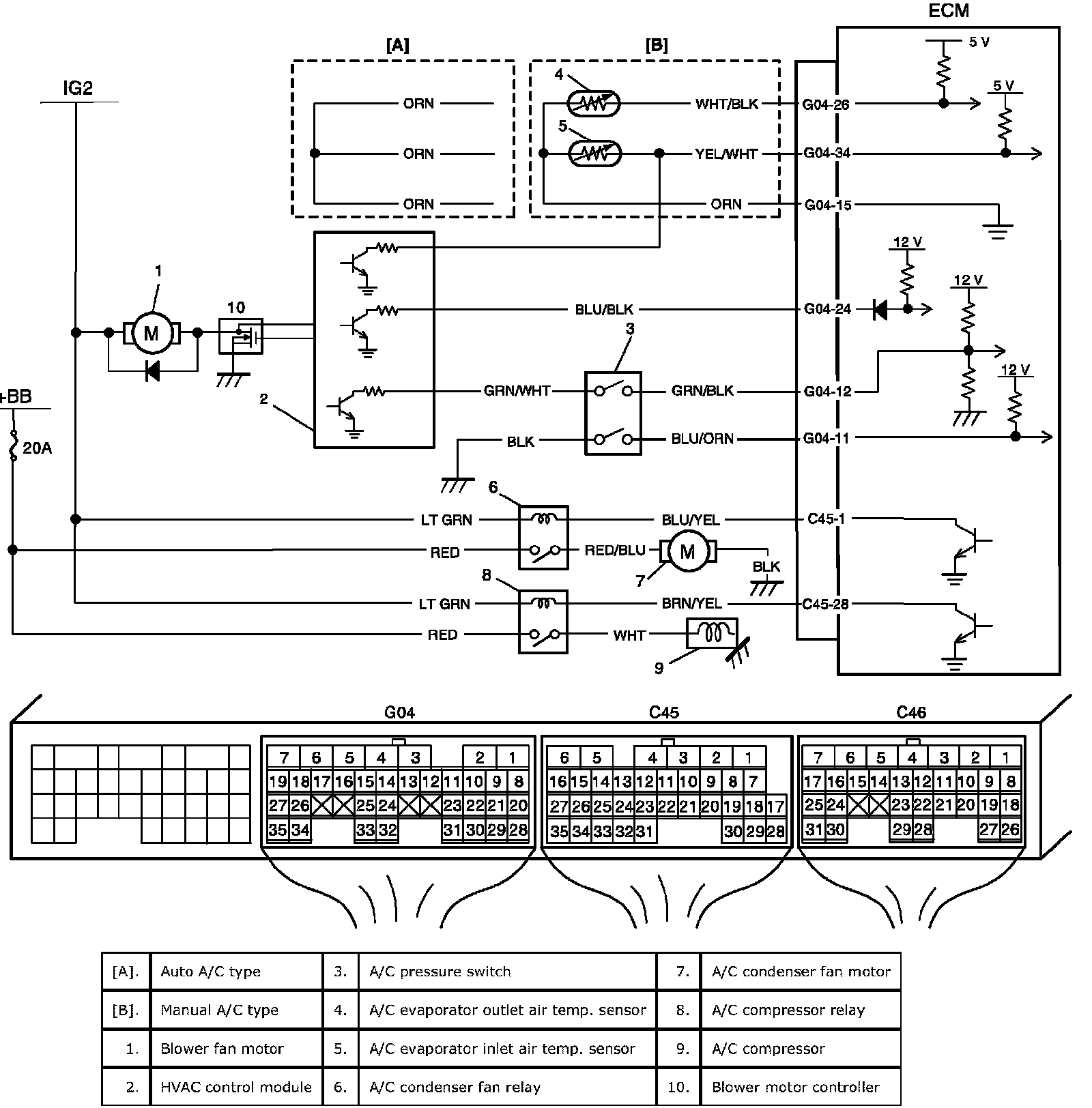

Wiring Diagram:

Wiring Diagram

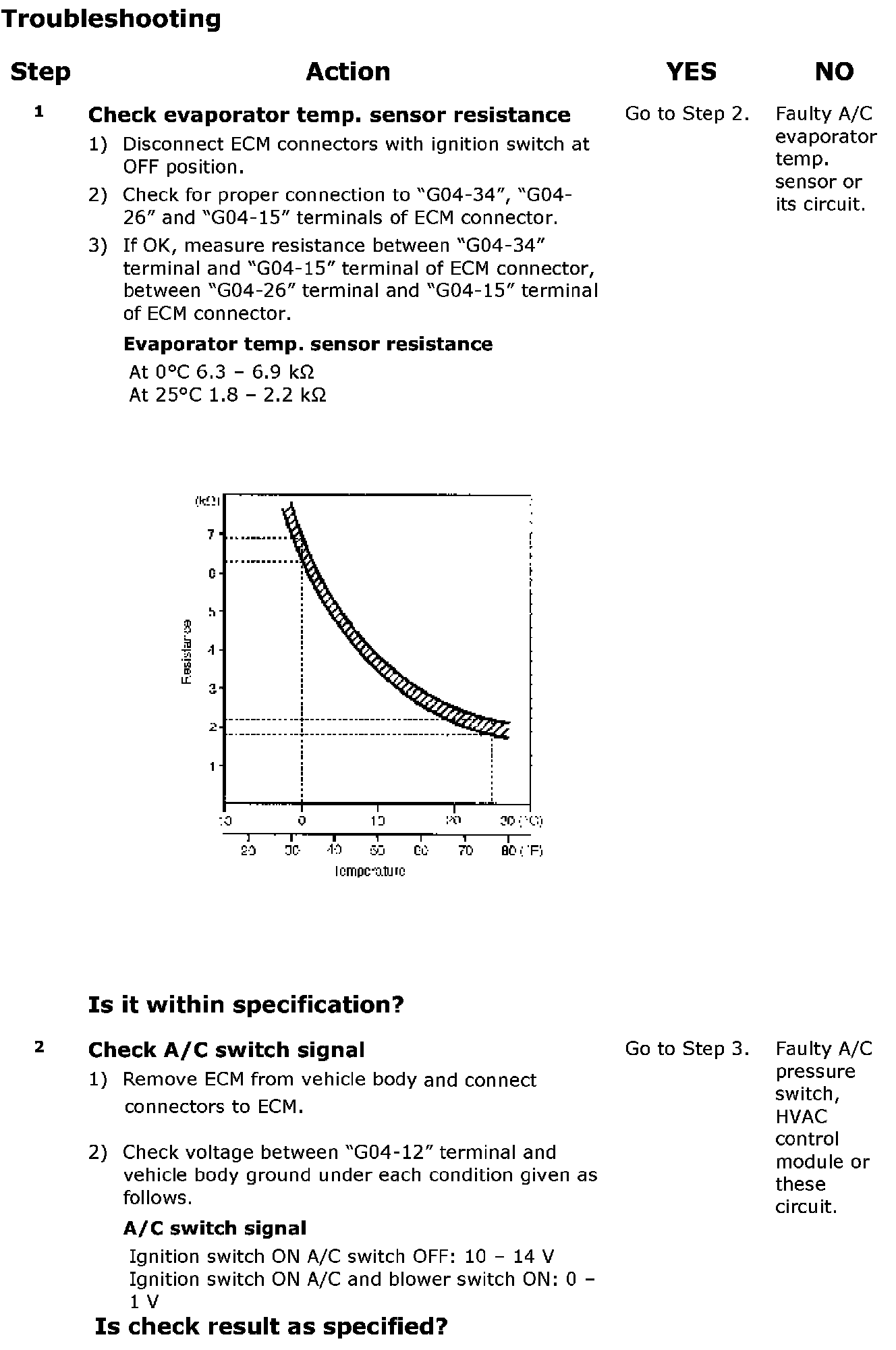

Step 1 - 2:

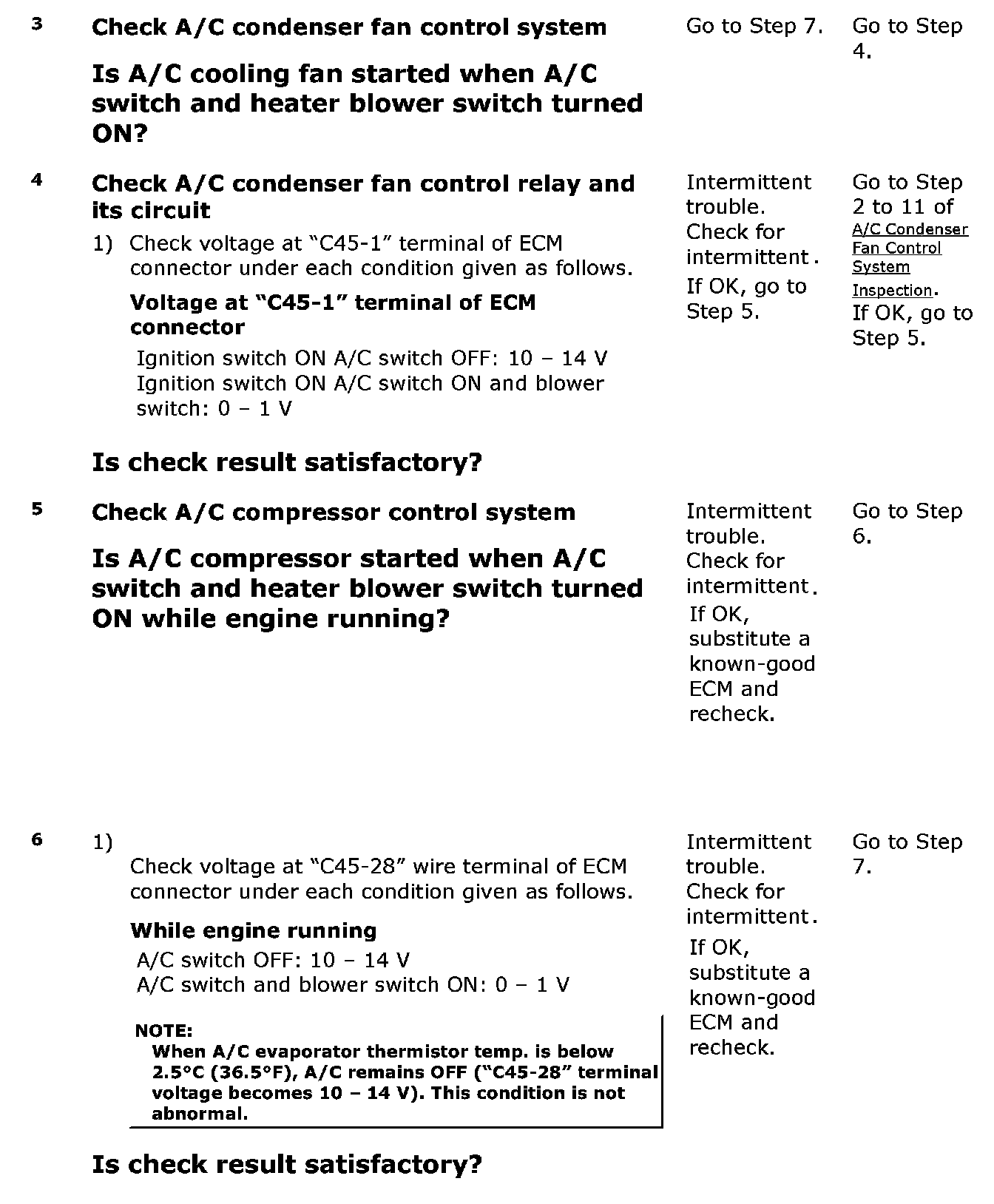

Step 3 - 6:

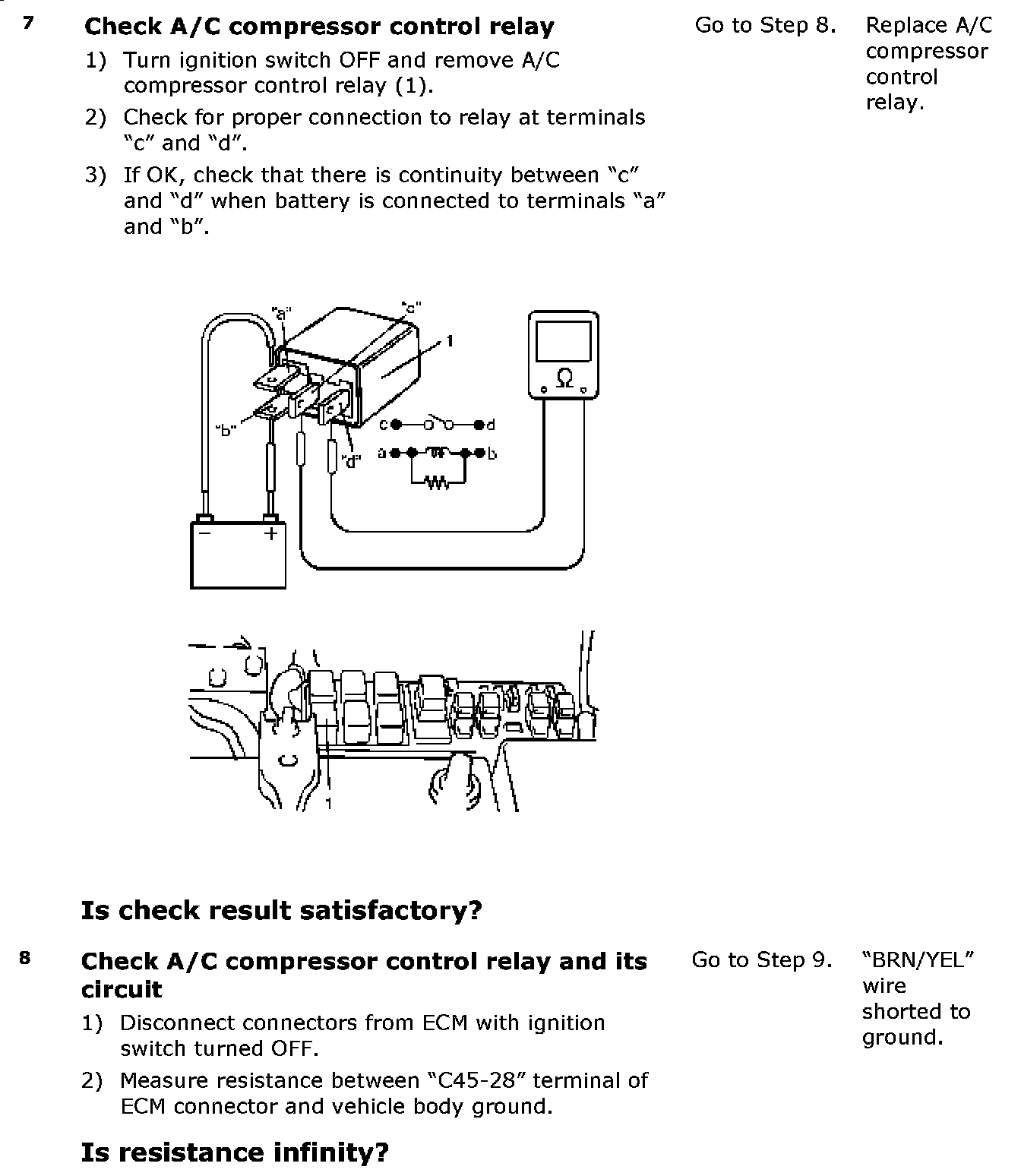

Step 7 - 8:

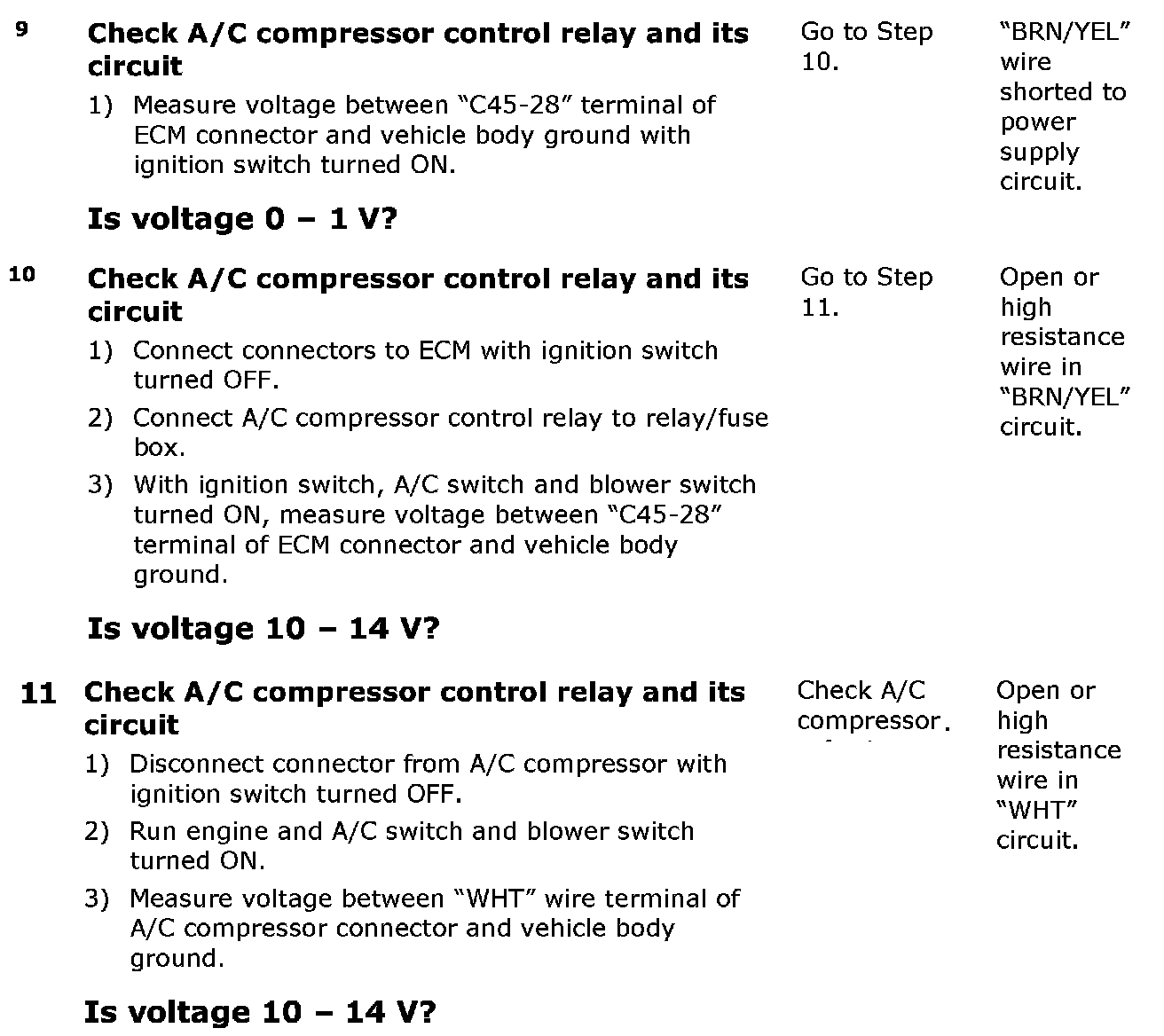

Step 9 - 11:

Troubleshooting
