For Notchback Model

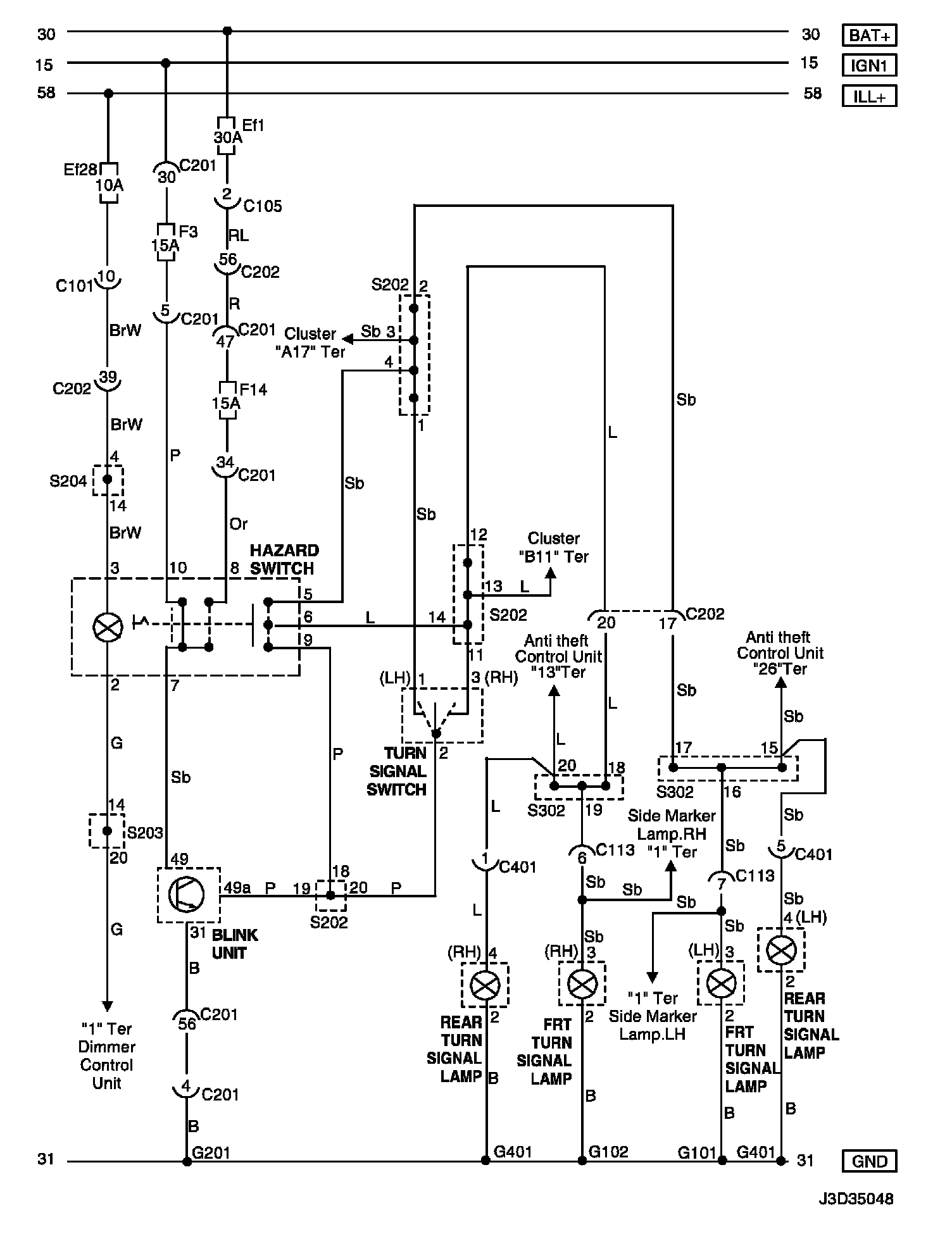

Hazard and Turn Signal Lamp Circuit Wiring Diagram:
WIRING DIAGRAM
C101 - G401:

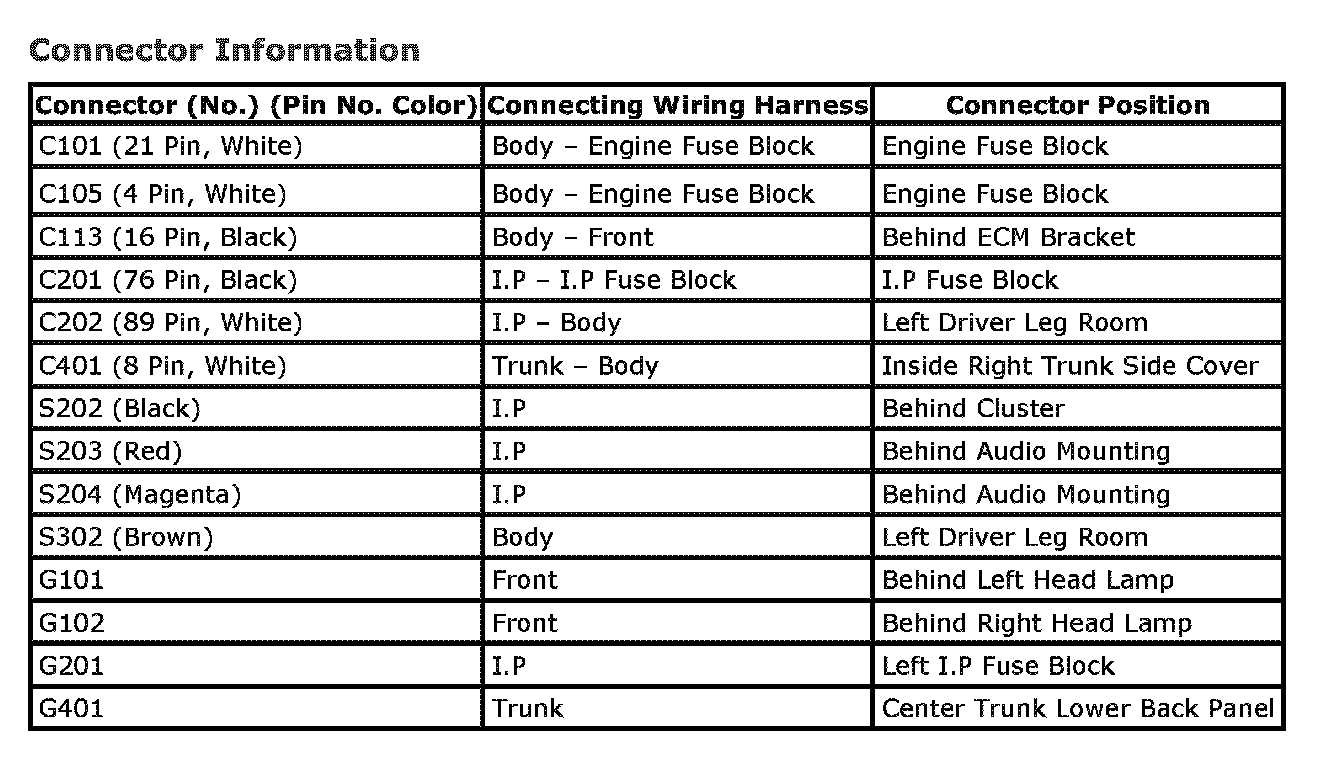

CONNECTOR INFORMATION

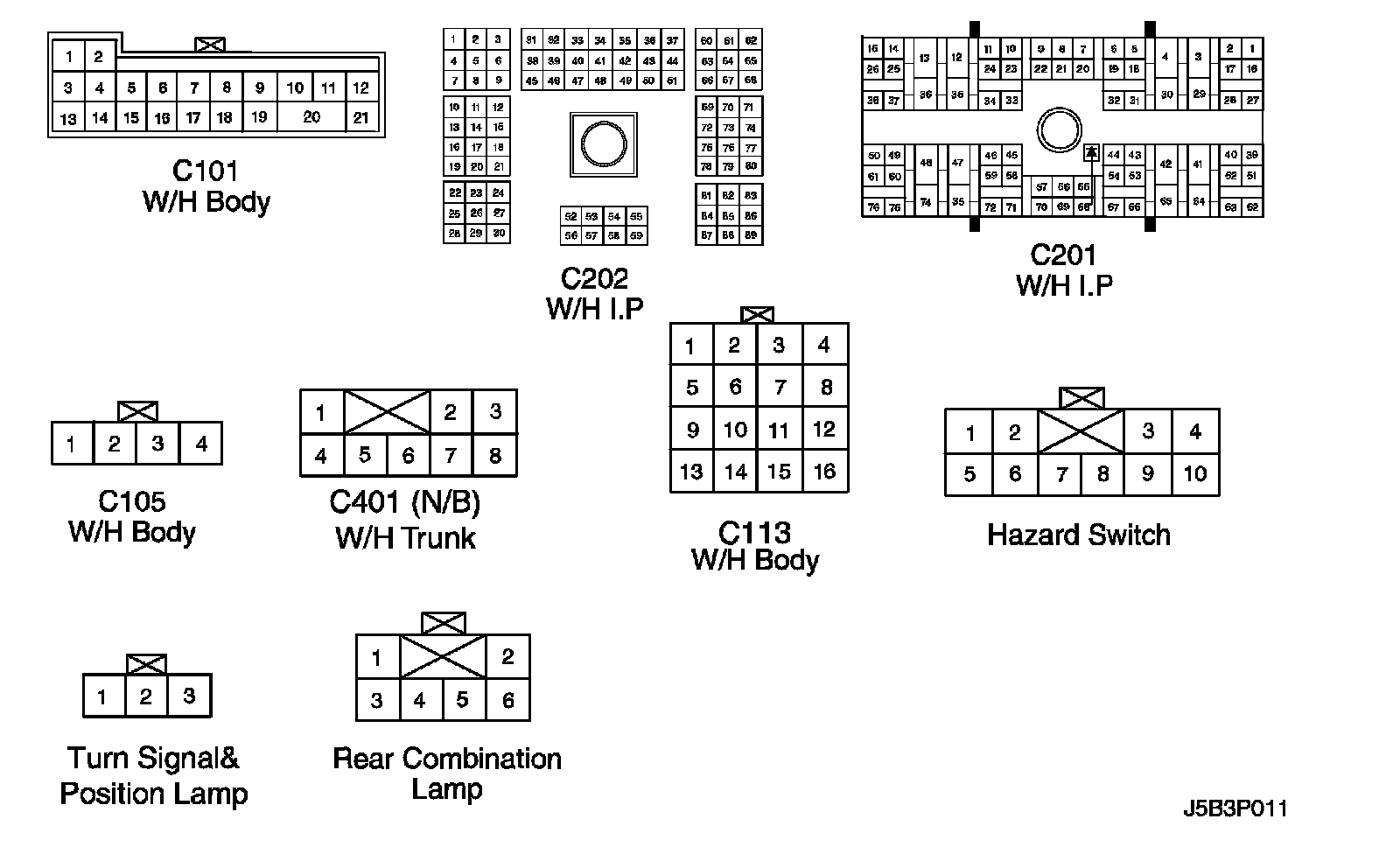

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

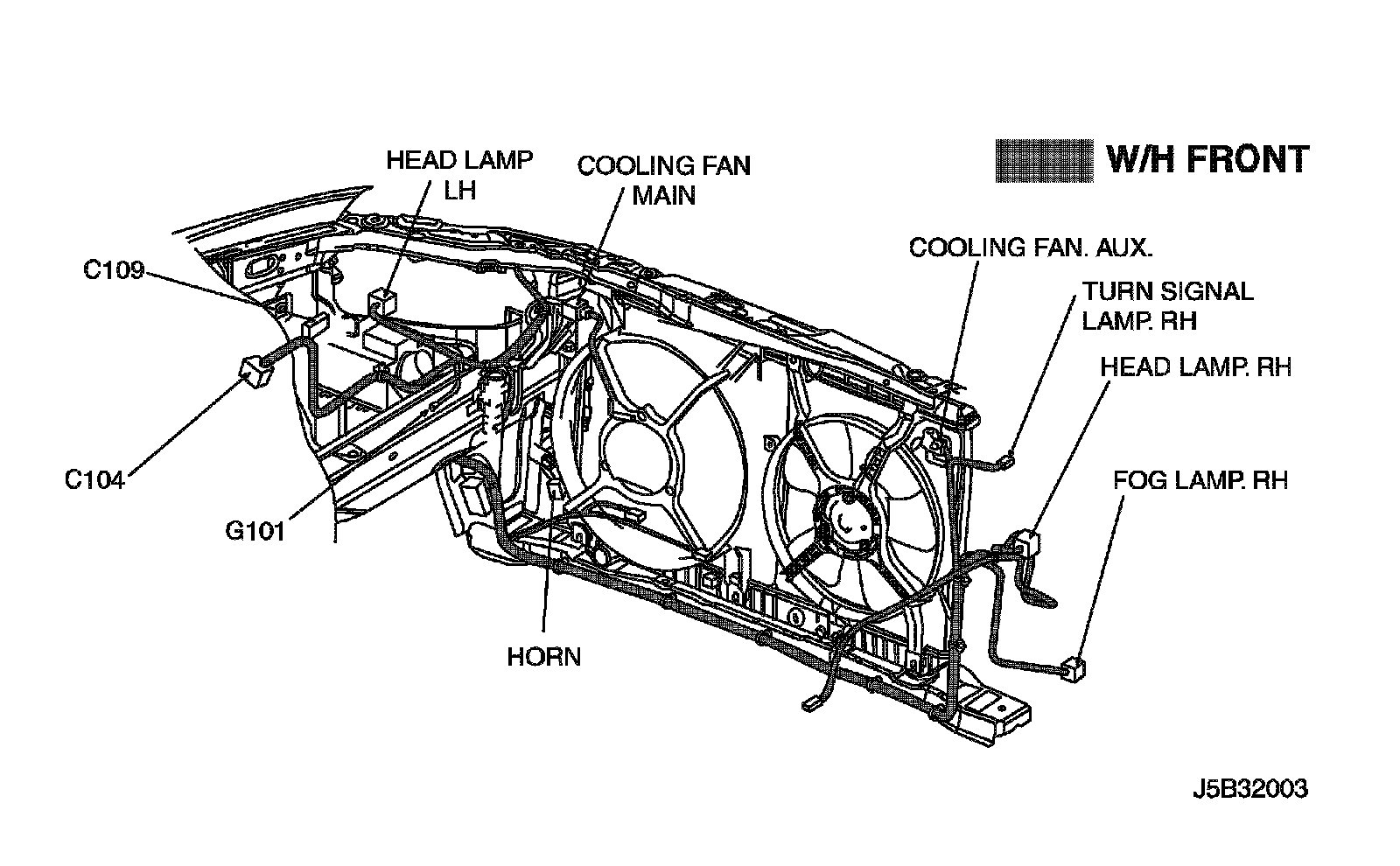

W/H FRONT:
POSITION OF CONNECTORS AND GROUNDS

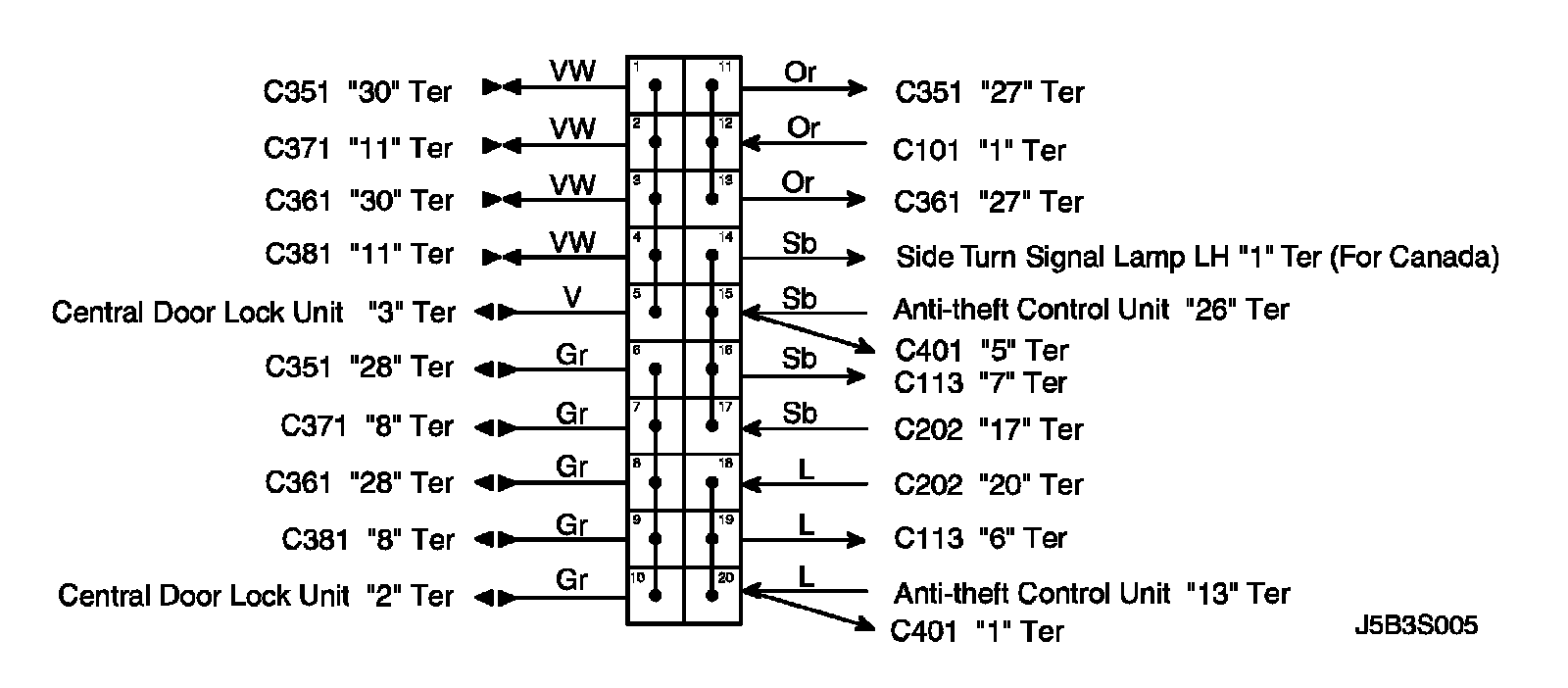

S202:
S203:
S204:
S3O2 (Notchback):
SPLICE PACK
