Intake Air Temperature Sensor Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the intake air temperature (IAT) sensor connector.
  3. Remove the IAT sensor by pulling it out of the air intake tube.

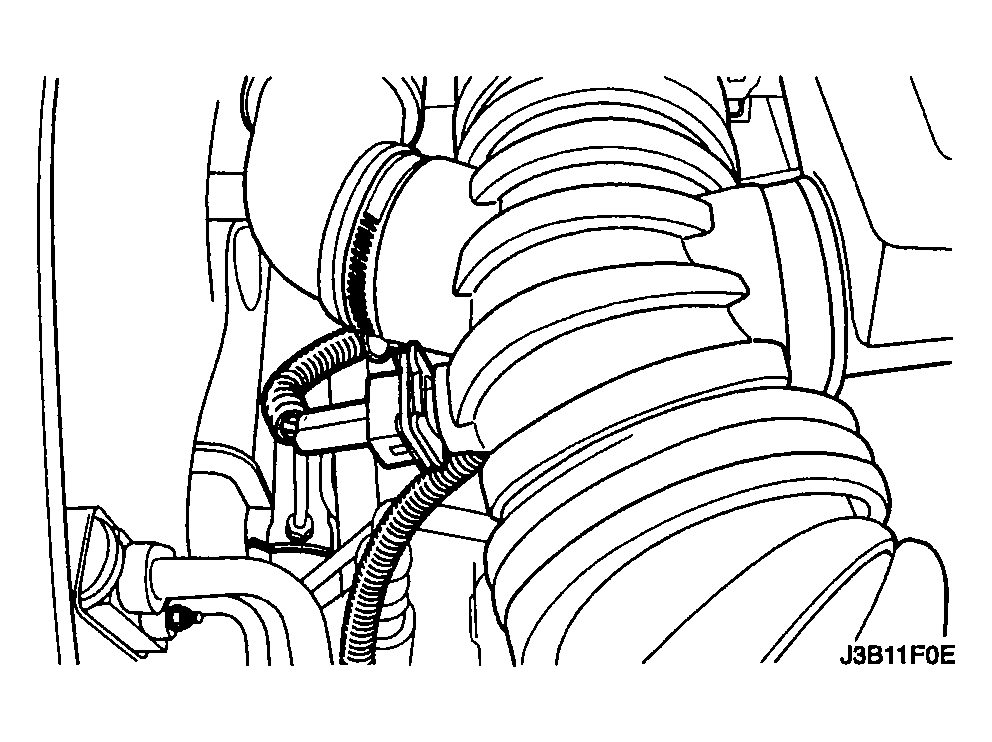

    Fig 1: Removing IAT Sensor From Air Intake Tube
    G04102614Courtesy of SUZUKI OF AMERICA CORP.
