Knock Sensor Removal and Installation: Installation

Install the knock sensor with the bolt.
Tighten

Tighten the knock sensor bolt to 20 N.m (15 lb-ft).

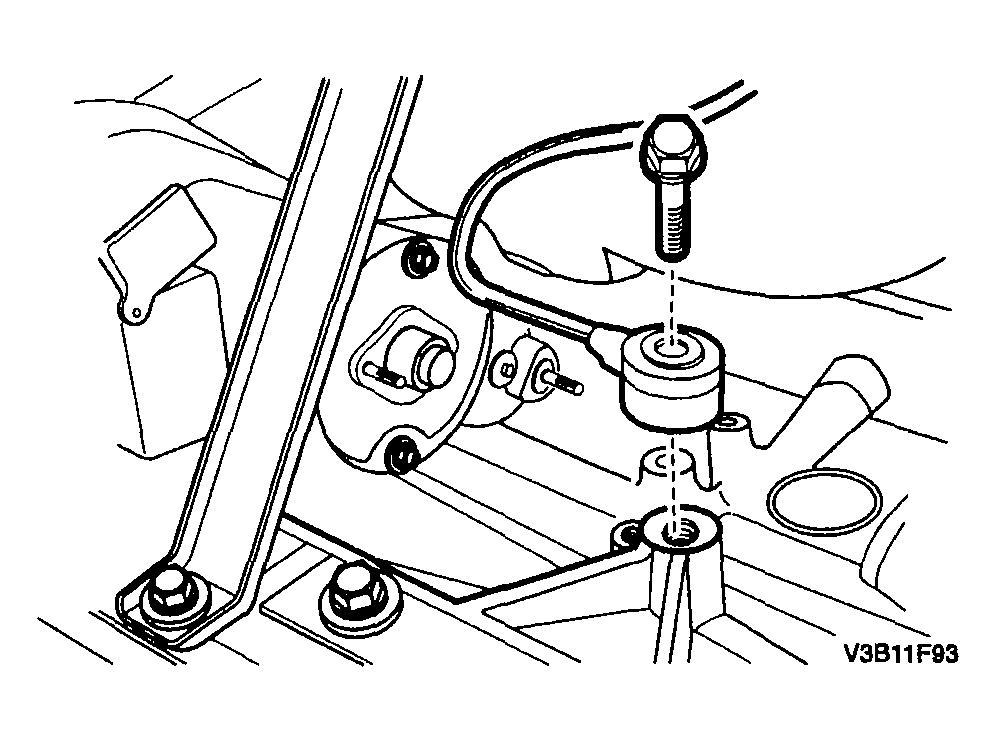

Fig 1: Installing Knock Sensor With Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Connect the electrical connector at the knock sensor.
Lower the vehicle.
Connect the negative battery cable.

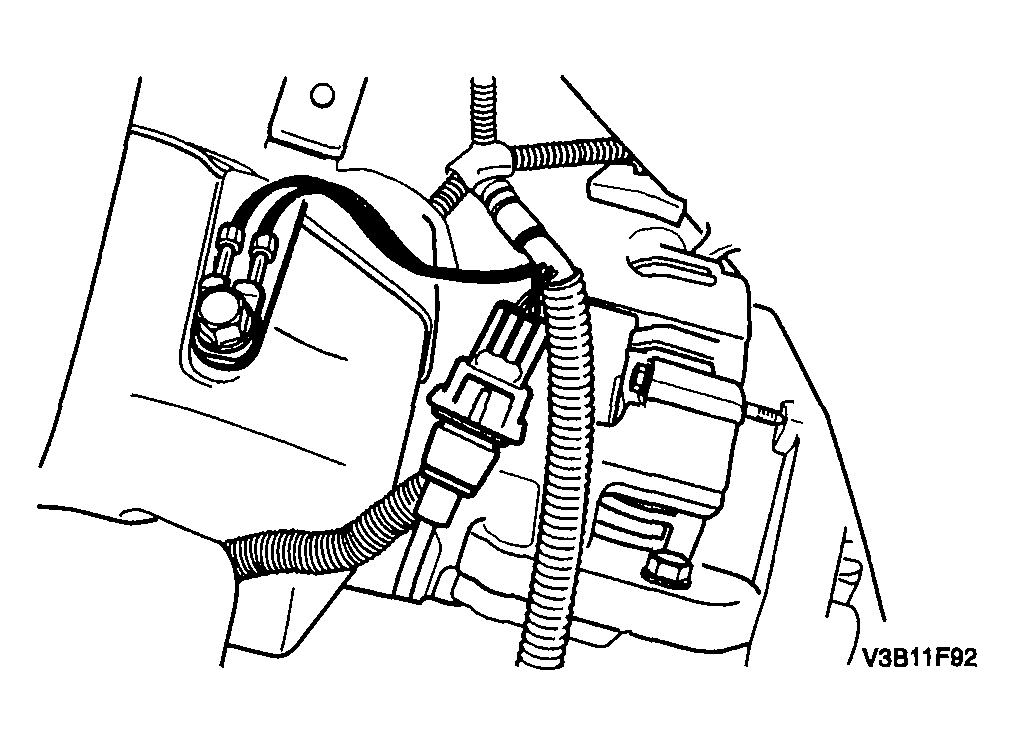

Fig 2: Identifying Electrical Connector At Knock Sensor
Courtesy of SUZUKI OF AMERICA CORP.
