Ignition Coil Installation

  1. Installation should follow the removal procedure in the reverse order.
  2. Install the ignition coils.

    Tighten

    Tighten the ignition coil retaining bolts to 6 - 8 N.m (53 ~ 71 lb-in).

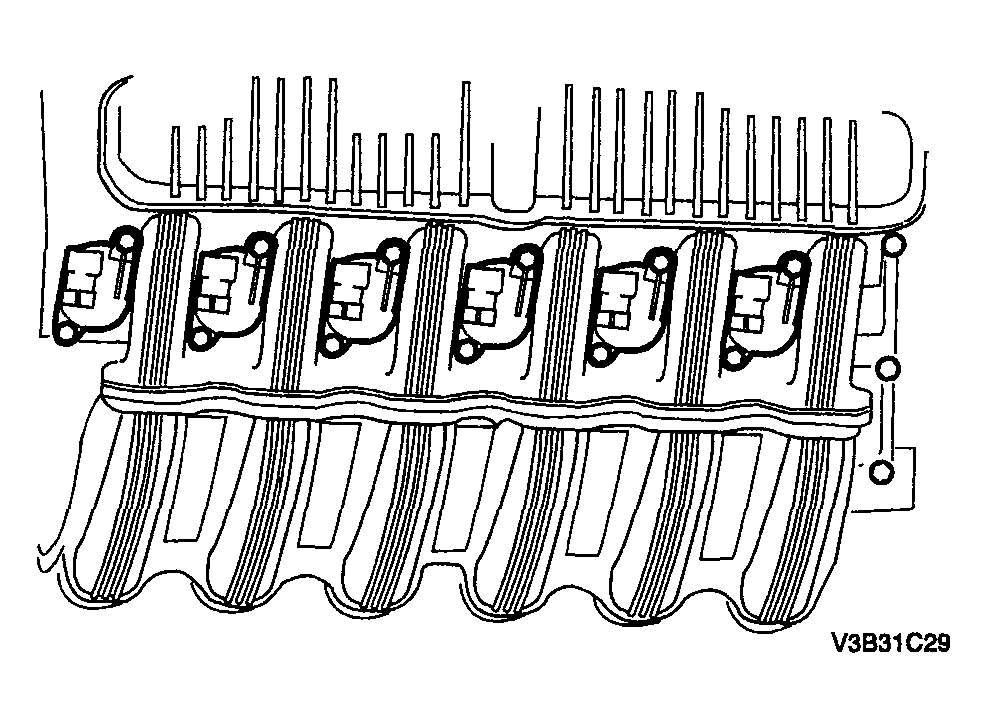

    Fig 1: Installing Ignition Coils Retaining Bolts
    G04094883Courtesy of SUZUKI OF AMERICA CORP.
