Connector Chart

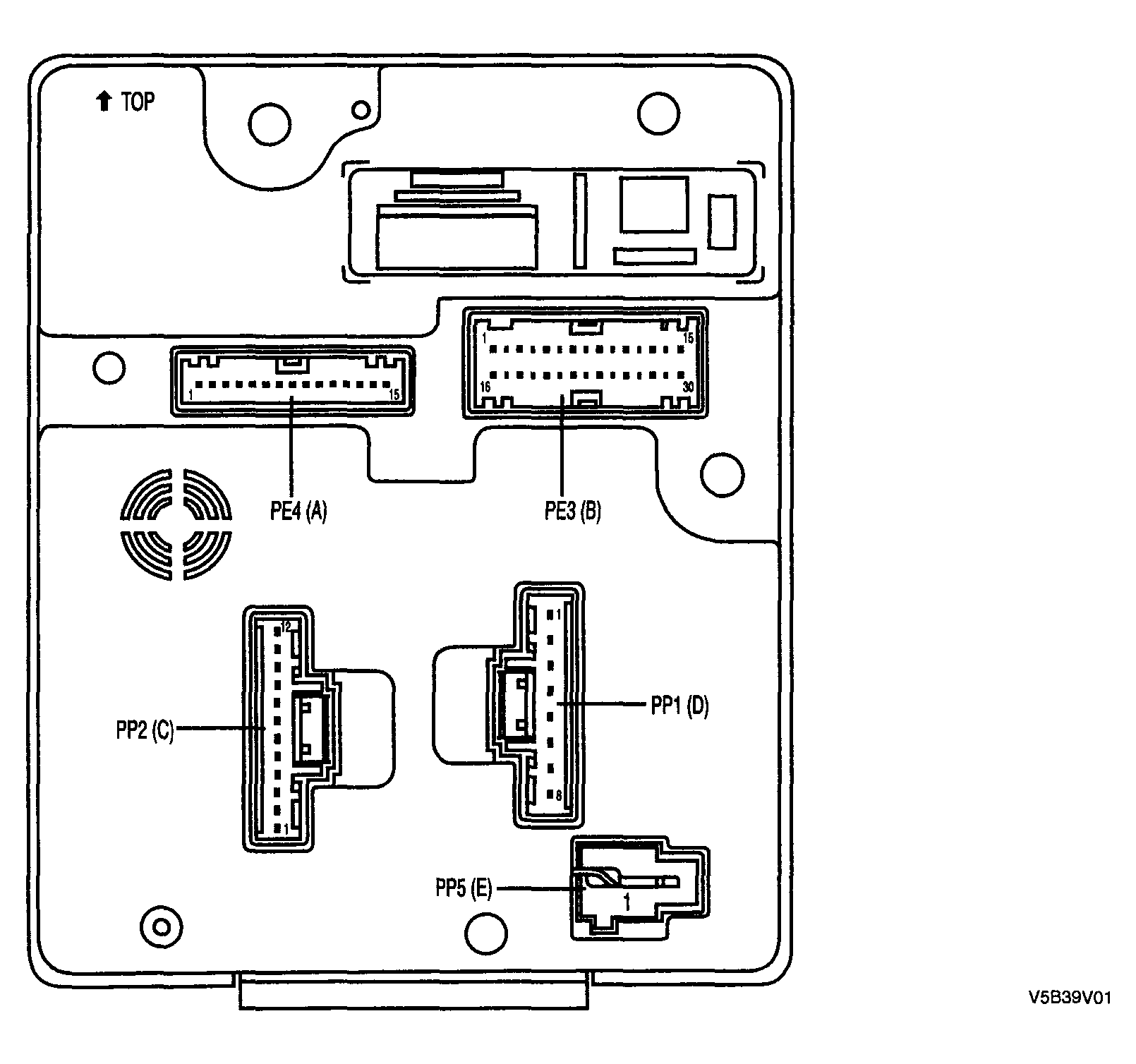

Fig 1: Connector Identification Chart

G04096561

Courtesy of SUZUKI OF AMERICA CORP.

CONNECTOR PE4 (A)

PIN	Description	Volts
1	-	-
2	Auto-Up Power Window Signal Input	-
3	Manual-Up Power Window Signal Input	13.3
4	Trunk Open Switch Signal Input	13.2
5	Central Door Locking Switch Signal (Open)	13.2
6	Central Door Locking Switch Signal (Close)	-
7	ECM Communication Input/Output	12.5
8	Door Contact Switch	13.3
9	Door Contact Switch	13.3
10	Auto-Down Power Window Signal Input	-
11	IGN 2 On	13.3
12	Manual-Down Power Window Signal Input	13.1
13	Window Relay Output	13.3
14	-	-
15	Hood Contact Switch Input	13.1

CONNECTOR PE3 (B)

PIN	Description	Volts
1	Wiper Intermittent Switch Input	-
2	-	-
3	-	-
4	-	-
5	-	-
6	-	-
7	-	-
8	Interior Courtesy Lamp Input	-
9	-	-
10	-	-
11	Key Halo Lamp Output	-
12	Vehicle Speed Sensor Input	12.5
13	Right Turn Signal Lamp Input	13.2
14	Left Turn Signal Lamp Input	13.2
15	Defogger Switch Signal Input	13.2
16	-	-
17	-	-
18	Hazard Lamp Input	13.2
19	DLC (K Line)	12.6
20	Security Indicator	-
21	-	-
22	-	-
23	Key Reminder Switch Input	-
24	-	-
25	Washer Signal Input	-
26	Ground	-
27	Seat Belt Switch Signal Input	13.3
28	Wiper Return Position Signal Input	-
29	-	-
30	Damper Switch Input	13.2

CONNECTOR PP2 (C)

PIN	Description	Volts
1	Wiper Stop Signal Output	-
2	Interior Courtesy Lamp Output	13.3
3	Wiper Intermittent Switch Output	-
4	Right Turn Signal Lamp Output	-
5	-	-
6	Power Window Up Output	-
7	-	-
8	Left Turn Signal Lamp Output	-
9	-	-
10	Power Window Down Output	-
11	Trunk Open Switch Signal Output	-
12	Siren Output	-

CONNECTOR PP1 (D)

PIN	Description	Volts
1	Ground	-
2	Door Open Signal Output	-
3	IGN 1 On	13.3
4	Ground	-
5	Central Door Locking Switch Signal (Open)	-
6	Central Door Locking Switch Signal (Close)	-
7	Electric Outside Rearview Mirror Defogger Output	-
8	Rear Window Defogger Output	-

CONNECTOR PP5 (E)

PIN	Description	Volts
1	ISU BAT	13.3
