Knock Sensor Installation

Installation should follow the removal procedure in the reverse order.
Install the knock sensor.
Tighten

Tighten the knock sensor retaining bolt to 18 ~ 20 N.m (13 ~ 15 lb-ft).

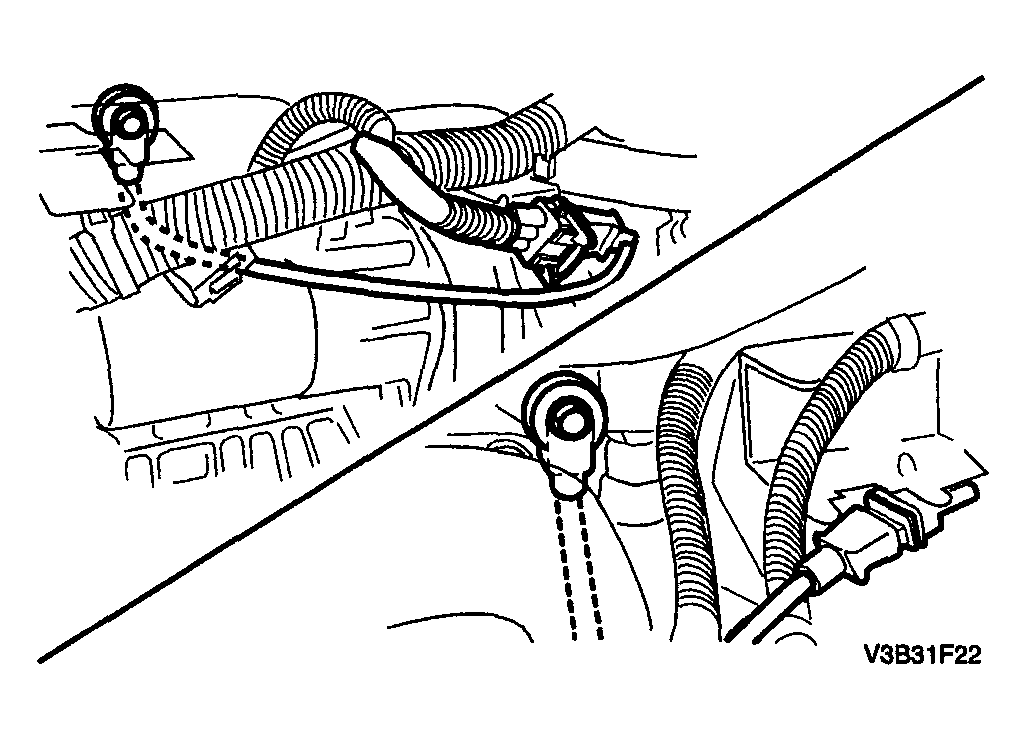

Fig 1: Installing Knock Sensor
Courtesy of SUZUKI OF AMERICA CORP.
Install the VIS vacuum tank.
Tighten

Tighten the VIS vacuum tank retaining bolts to 7 ~ 9 N-m (62 ~ 80 lb-in).

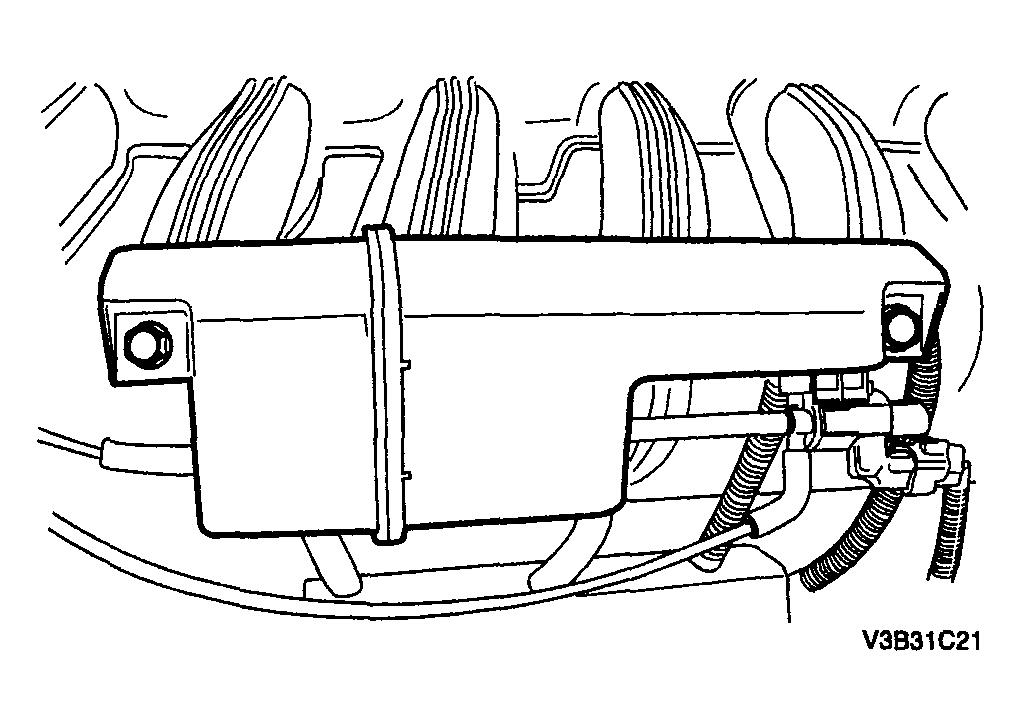

Fig 2: Install VIS Vacuum Tank
Courtesy of SUZUKI OF AMERICA CORP.
