Fuel pump Description

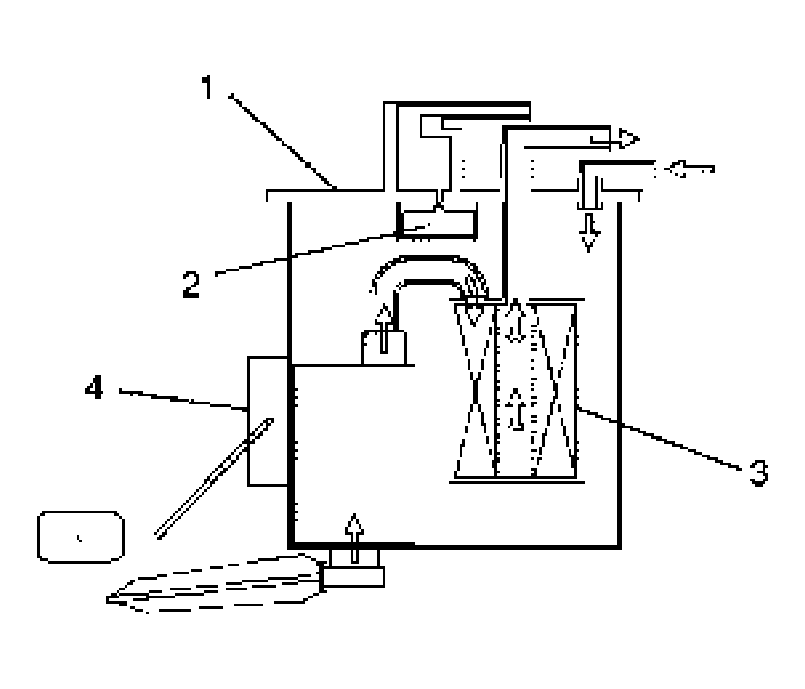

An in-tank type electric pump has been adopted for the fuel pump (1).
Incorporated in the pump assembly are;
- Fuel cut valve (2) which closes as the float rises so that the fuel will not enter the canister when the fuel level in the tank rises high depending on the fuel level in the tank and the vehicle tilt angle
- Fuel filter (3)
Also, a fuel level gauge (4) is attached.
