Fuel Pump Relay Inspection
- Disconnect negative cable at battery.

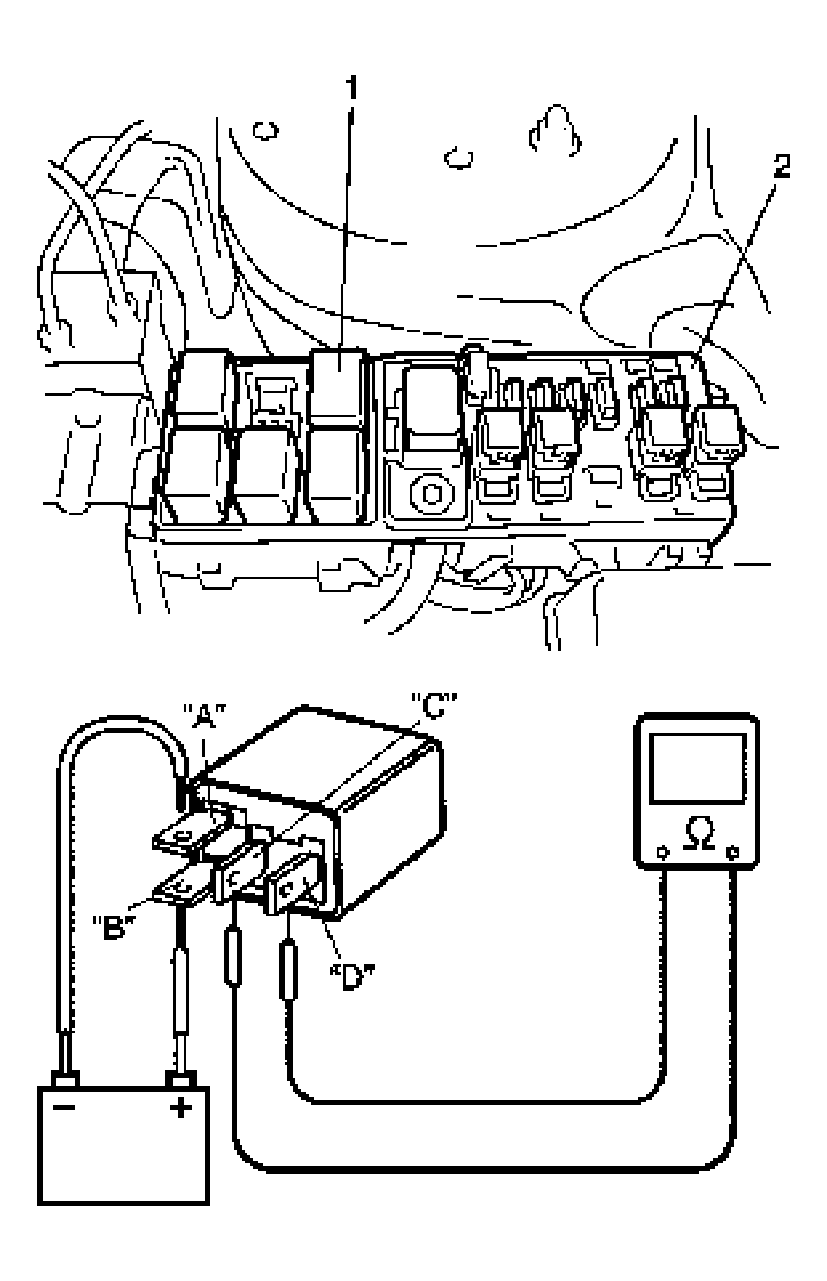

- Remove fuel pump relay (1), from relay box (2).
- Check that there is no continuity between terminal "C" and "B". If there is continuity, replace relay.
- Connect battery positive (+) terminal to terminal "B" of relay.
Connect battery negative (-) terminal "A" of relay.
Check continuity between terminal "C" and "D".
If there is no continuity when relay is connected to the battery, replace relay.
