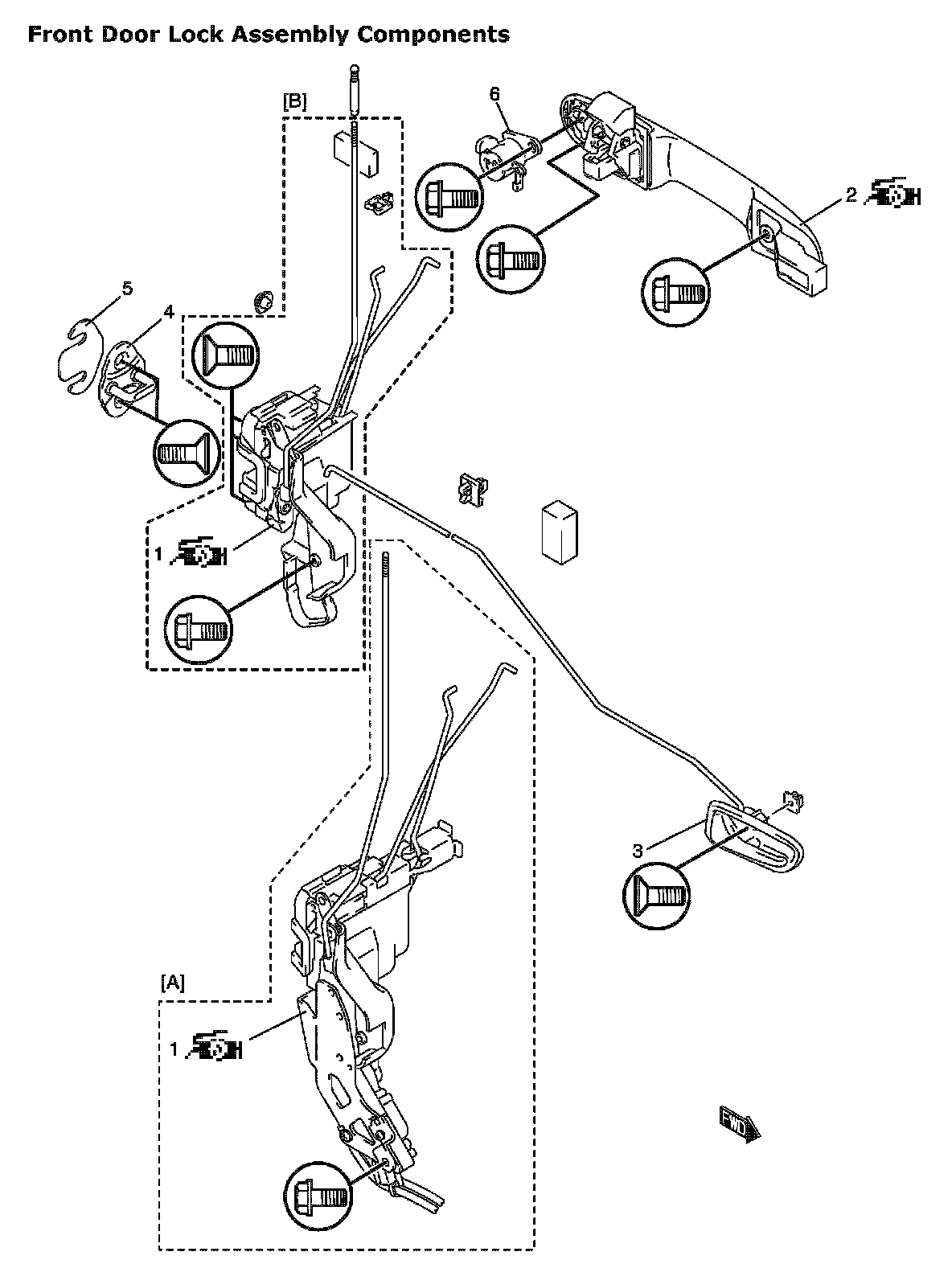

Front Door Lock Assembly Components

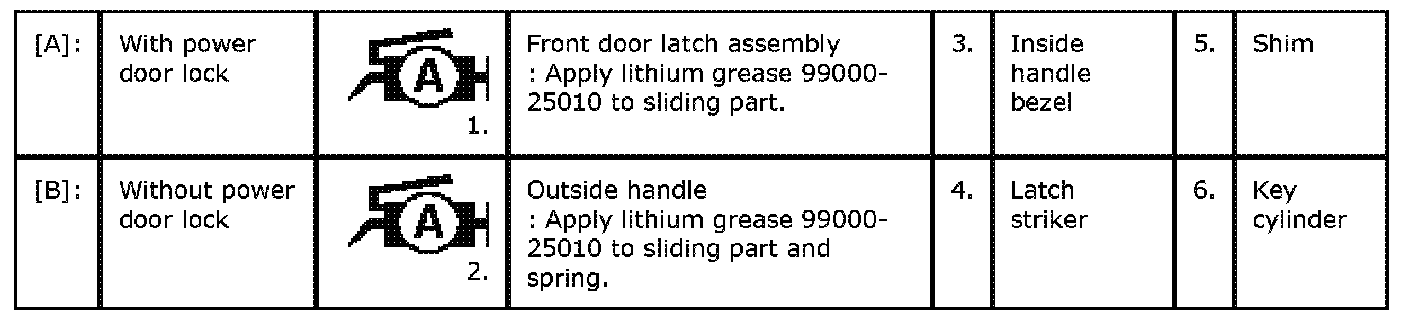

Front Door Lock Assembly Components Part 1:



Front Door Lock Assembly Components Part 2:
