Aerio L4-2.3L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
O Connectors
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
O Connectors

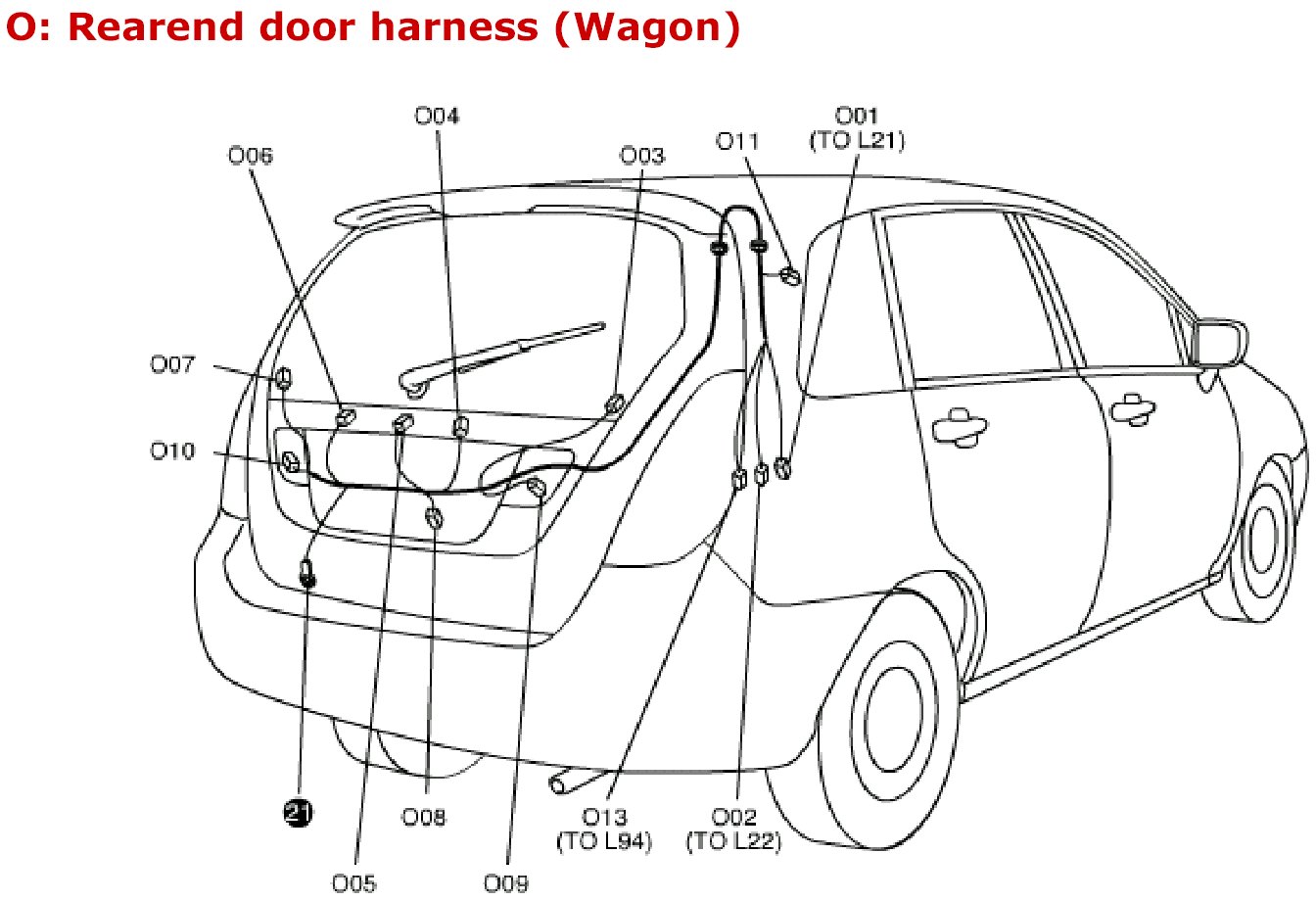

O Rearend Door Harness (Wagon) View:

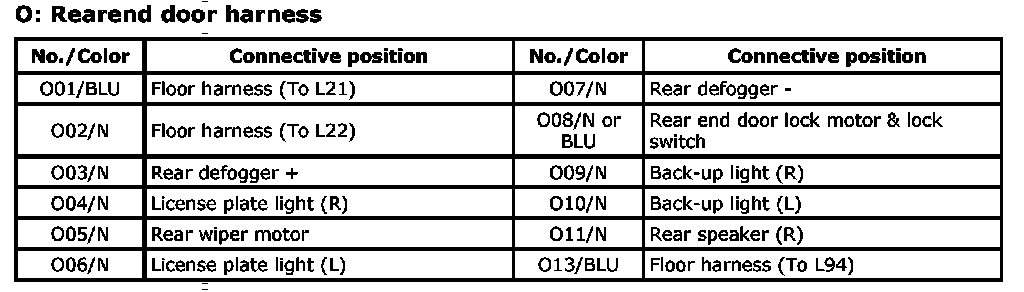

O: Rearend Door Harness (Wagon) Index:
