ECM

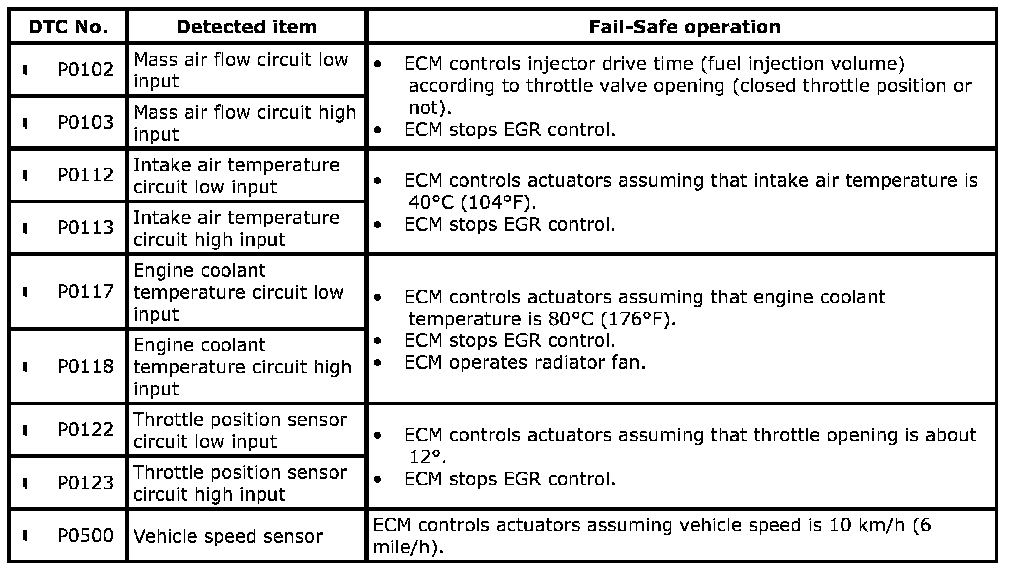

FAIL-SAFE TABLE

P0102 - P0500:




When any of the given DTCs is detected, ECM enters fail-safe mode as long as malfunction continues to exist but that mode is canceled when ECM detects normal condition after that.
