Sedan


Torque Specifications

Front Seat Adjuster Bolt 35 Nm (3.5 kgf-m/25.5 ft. lbs.)


NOTE:
The specified tightening torque is also described in the following.

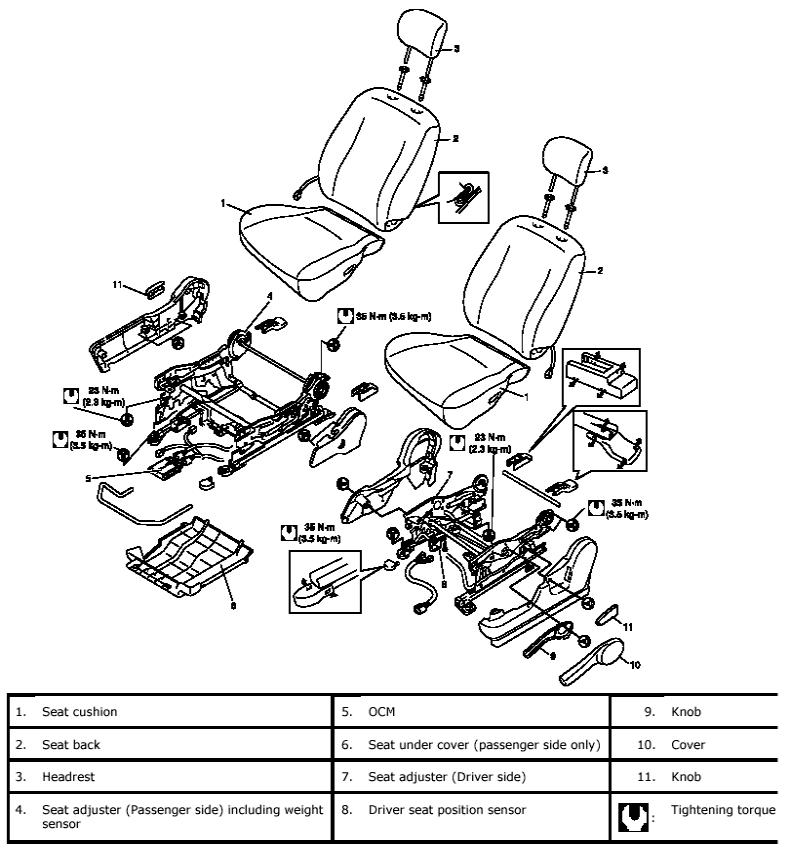

Front Seat Components:

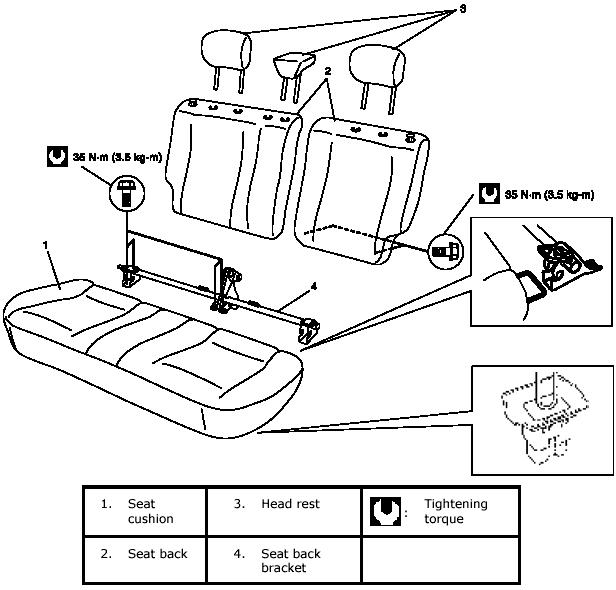

Rear Seat Components:
