DTC P0135: HO2S Heater Performance Sensor 1: Notes

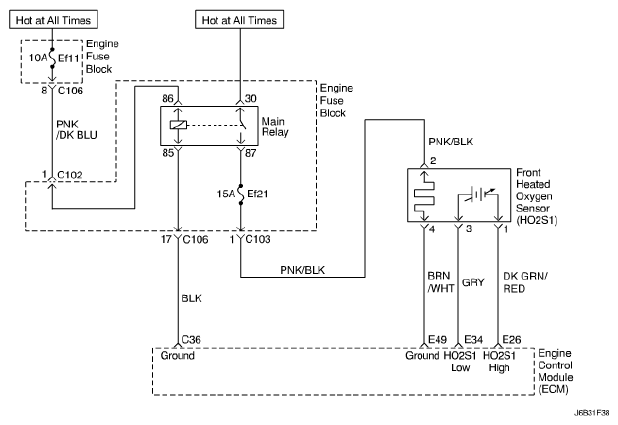

Fig 1: HO2S Heater Performance Sensor - Circuit Diagram
G04716233Courtesy of SUZUKI OF AMERICA CORP.
