DTC P0141: HO2S Heater Performance Sensor 2: Notes

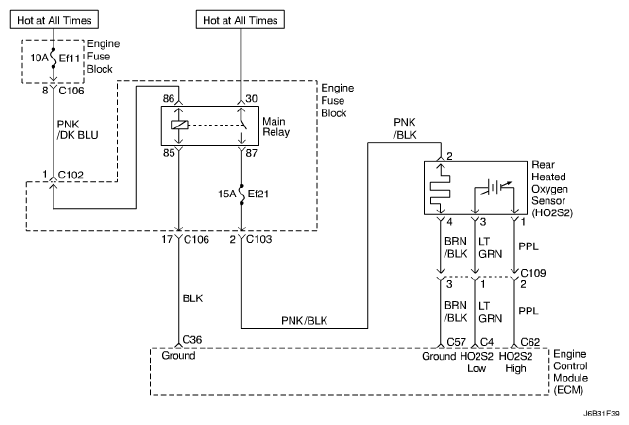

Fig 1: HO2S Heater Performance Sensor - Circuit Diagram
G04716235Courtesy of SUZUKI OF AMERICA CORP.
