DTC P0300: Engine Misfire Detected: Notes

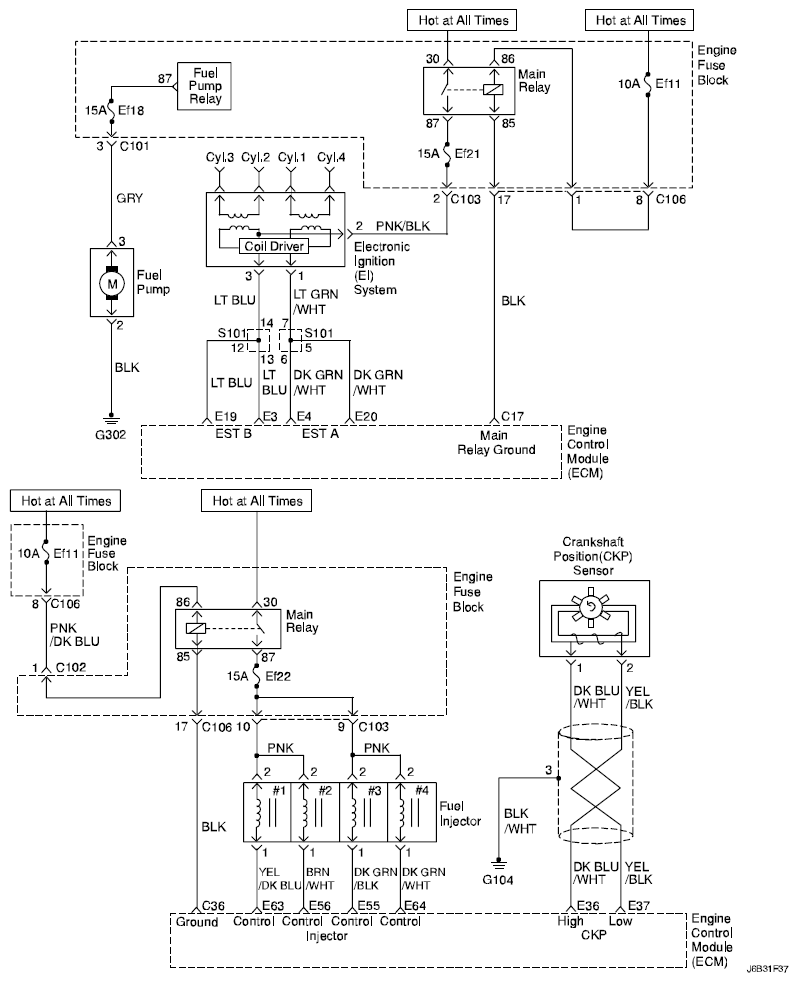

Fig 1: Engine Misfire Detected - Circuit Diagram
G04716269Courtesy of SUZUKI OF AMERICA CORP.
