DTC P0317: Rough Road Sensor Sensing System Input Not Present: Notes

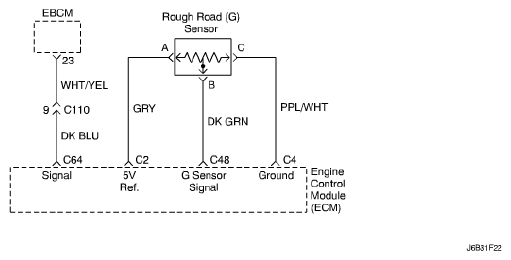

Fig 1: Rough Road Sensor Sensing System Input Not Present - Circuit Diagram
G04716274Courtesy of SUZUKI OF AMERICA CORP.
