Knock Sensor Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Raise and suitably support the vehicle.
  3. Disconnect electrical connector at the knock sensor.

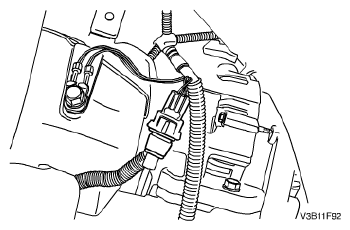

    Fig 1: Knock Sensor Electrical Connector
    G04716374Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the bolt and the knock sensor.

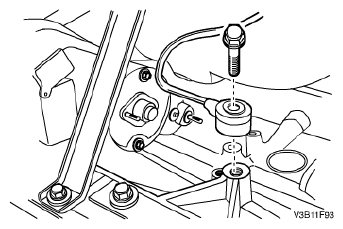

    Fig 2: Knock Sensor And Bolt
    G04716375Courtesy of SUZUKI OF AMERICA CORP.
