Fuse Chart

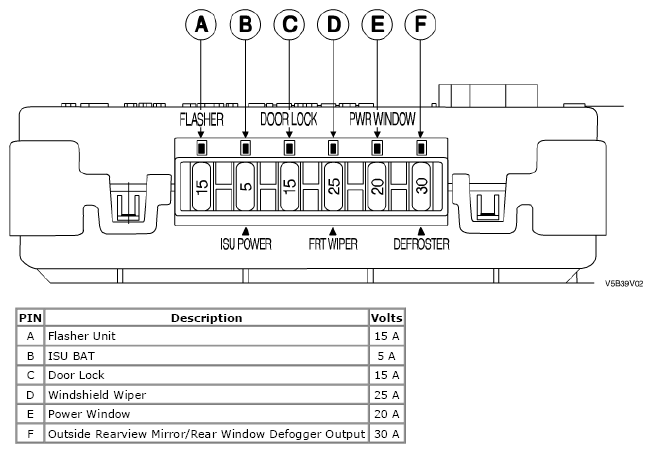

Fig 1: Fuse Identification Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
