Generator Installation

Install the generator to the generator bracket and insert the generator bolt.
Tighten:
- Tighten the generator bracket upper bolt to 35 N.m (26 lb-ft).
- Tighten the generator bracket lower bolt to 40 N.m (30 lb-ft).

  Fig 1: Identifying Generator Bracket And Bolts
  Courtesy of SUZUKI OF AMERICA CORP.
Connect the harness connector to the back of the generator, and the generator lead to the battery.

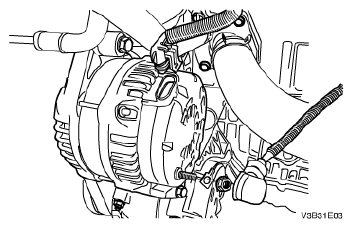

Fig 2: Connecting Harness Connector To Back Of Generator
Courtesy of SUZUKI OF AMERICA CORP.
Route the serpentine accessory drive belt. Refer to SERPENTINE ACCESSORY DRIVE BELT INSTALLATION .
Relieve tension on the belt by first applying downward pressure on the automatic tension roller bolt and releasing pressure once the belt is in place.
Connect the negative battery cable.

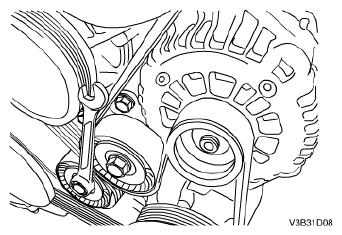

Fig 3: Adjusting Serpentine Accessory Belt Tensioner
