Fuel Pump Installation
- Clean the gasket mating surface on the fuel tank.
- Position the new gasket in place.

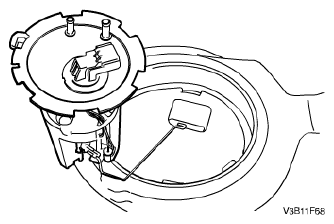

- Install the fuel pump into the fuel tank in the same location as removed for ease of line and connector installation.
Courtesy of SUZUKI OF AMERICA CORP.
- Position the lock ring in place and turn it clockwise until it contacts the tank stop.
- Connect the fuel pump assembly connector.
- Install the fuel pump outlet line.
- Install the fuel tank return line.
- Install the fuel pump access cover.
- Connect the negative battery cable.
- Perform an operational check of the fuel pump.
- Install the rear seat. Refer to REAR SEAT CUSHION INSTALLATION
.
