Ignition Coil Installation

1. Installation should follow the removal procedure in the reverse order.
2. Install the ignition coils.

Tighten:

Tighten the ignition coil retaining bolts to 6 - 8 N.m (53 - 71 lb-in.).

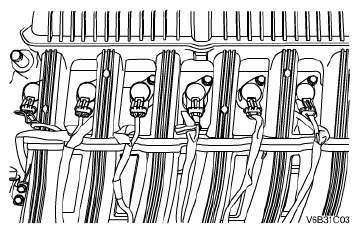

Fig 1: Identifying Ignition Coils

Courtesy of SUZUKI OF AMERICA CORP.
