DTC P0101: Mass Air Flow (MAF) Sensor Performance: Notes

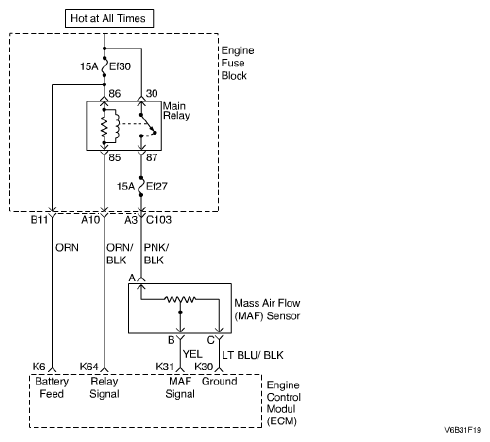

Fig 1: Mass Air Flow (MAF) Sensor Performance - Wiring Diagram
G04718648Courtesy of SUZUKI OF AMERICA CORP.
