DTC P0121: Throttle Position (TP) Sensor 1 Performance: Notes

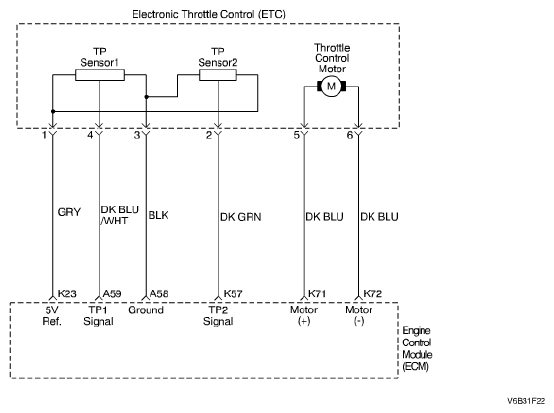

Fig 1: Throttle Position (TP) Sensor 1 Performance - Wiring Diagram
G04718660Courtesy of SUZUKI OF AMERICA CORP.
