On-Board Diagnostic (OBD II) System Check: Notes

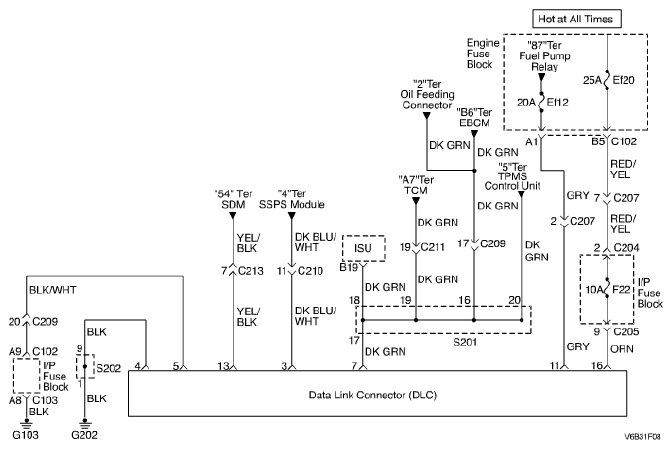

Fig 1: On-Board Diagnostic (OBD II) System Check - Wiring Diagram
G04718629Courtesy of SUZUKI OF AMERICA CORP.
