ECM Wiring Diagram

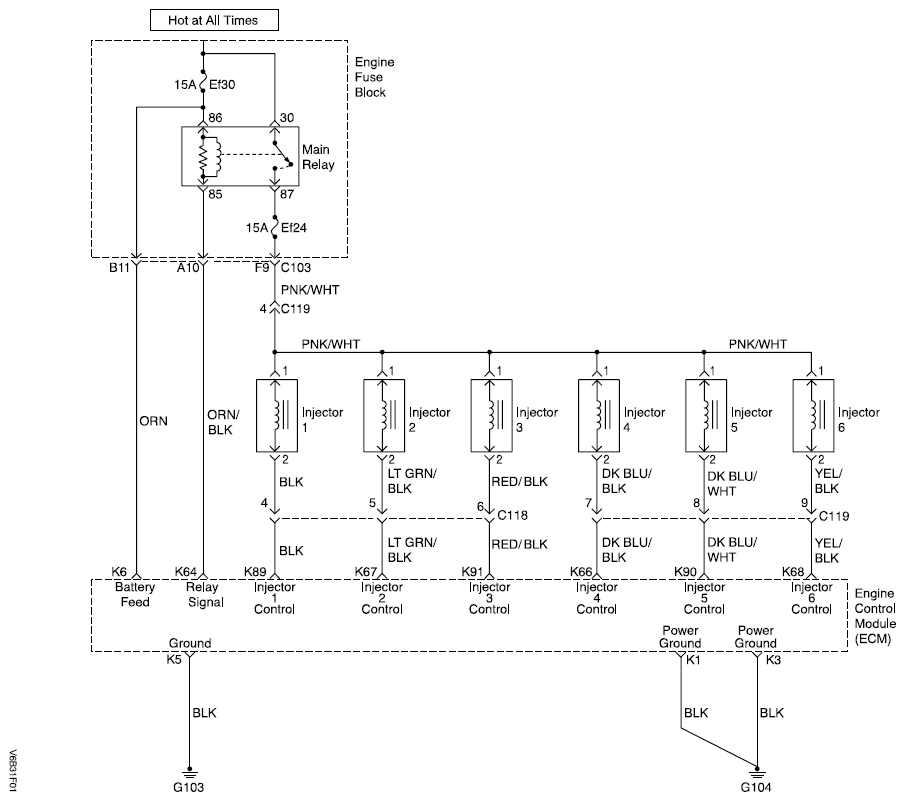

Fig 1: ECM Wiring Diagram (1 Of 7)

G04718604

Courtesy of SUZUKI OF AMERICA CORP.

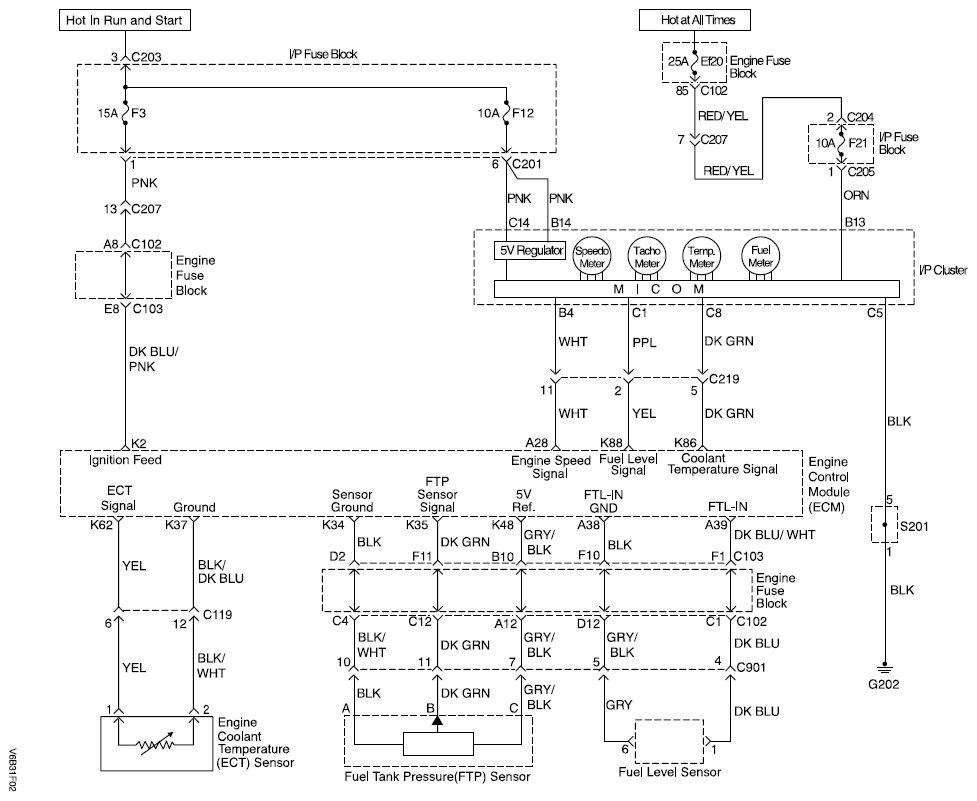

Fig 2: ECM Wiring Diagram (2 Of 7)

G04718605

Courtesy of SUZUKI OF AMERICA CORP.

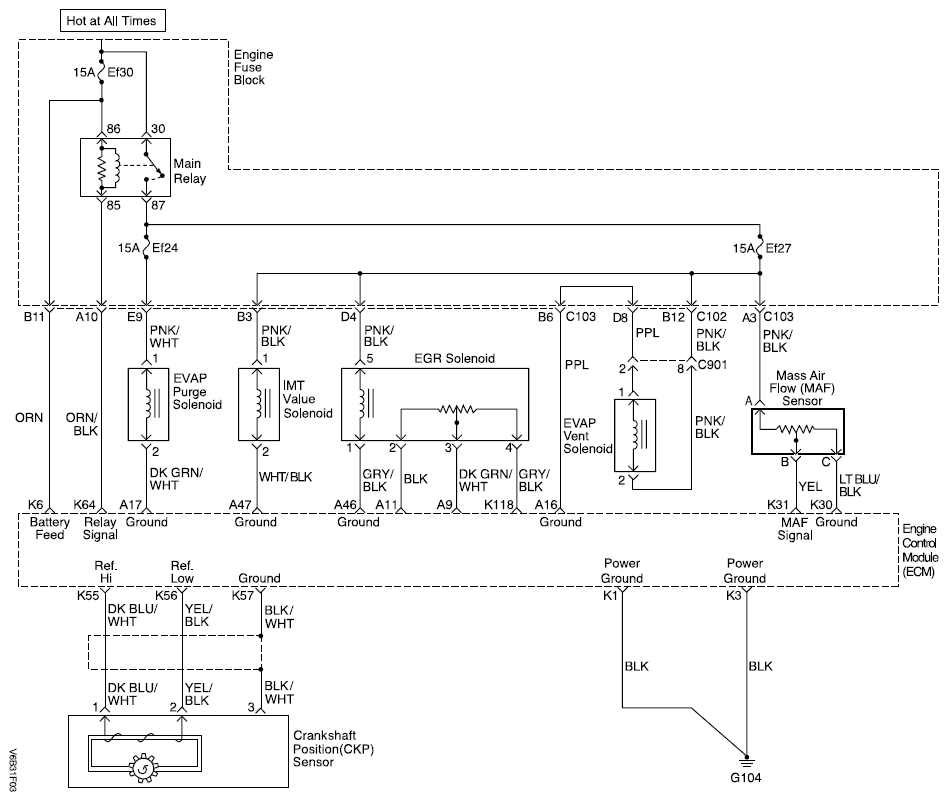

Fig 3: ECM Wiring Diagram (3 Of 7)

G04718606

Courtesy of SUZUKI OF AMERICA CORP.

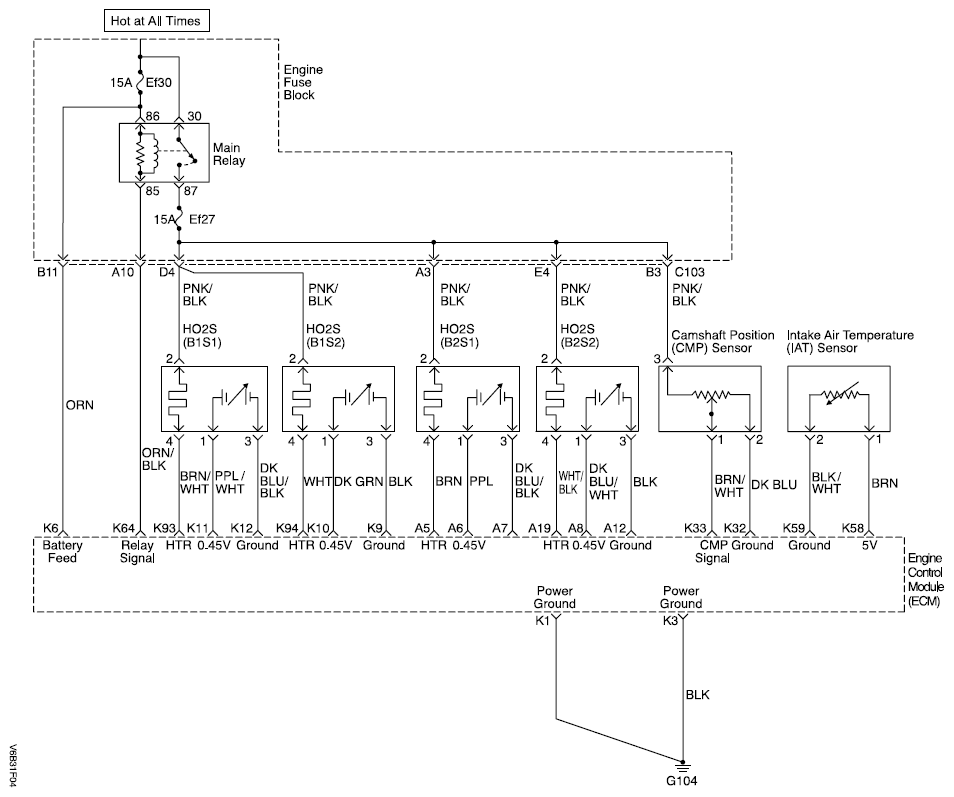

Fig 4: ECM Wiring Diagram (4 Of 7)

G04718607

Courtesy of SUZUKI OF AMERICA CORP.

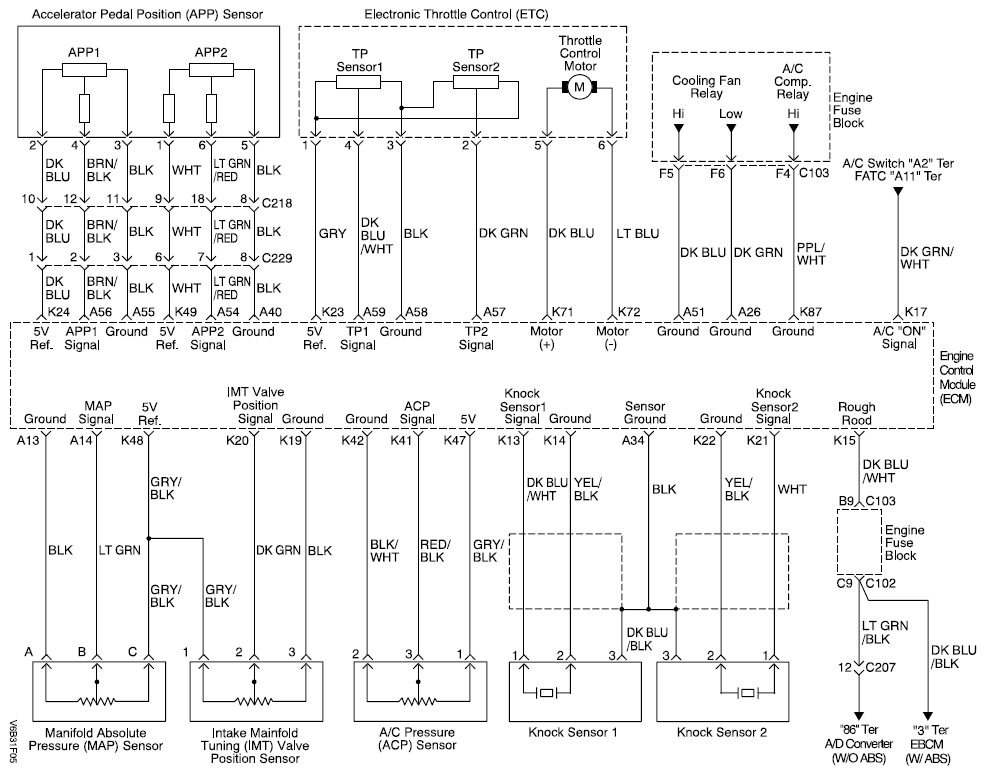

Fig 5: ECM Wiring Diagram (5 Of 7)

G04718608

Courtesy of SUZUKI OF AMERICA CORP.

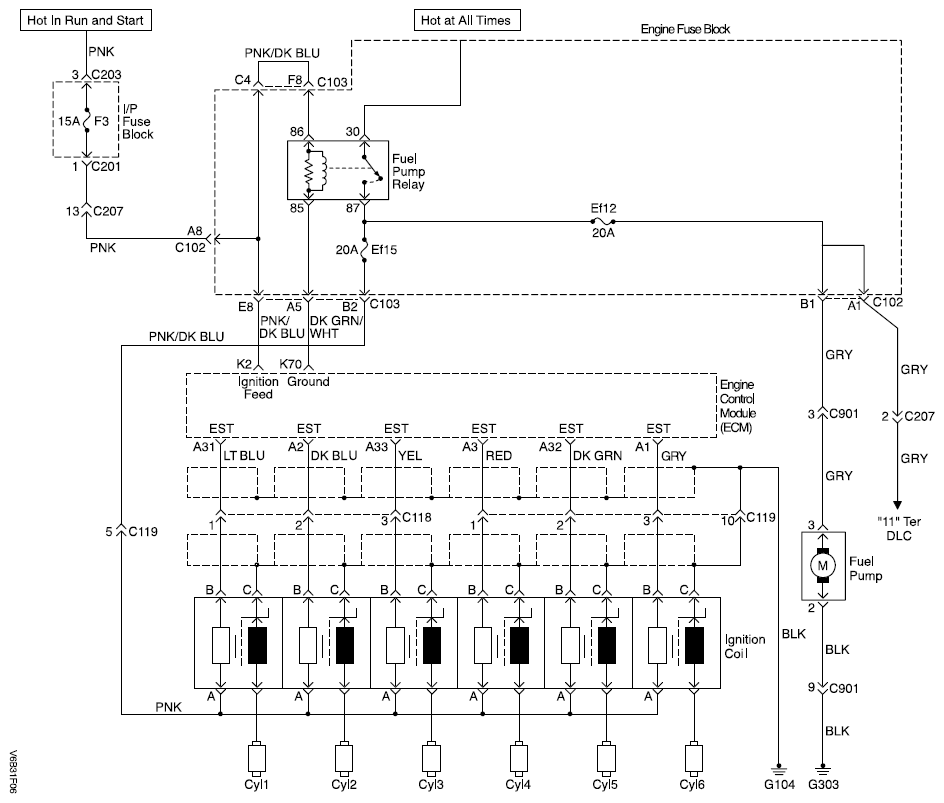

Fig 6: ECM Wiring Diagram (6 Of 7)

G04718609

Courtesy of SUZUKI OF AMERICA CORP.

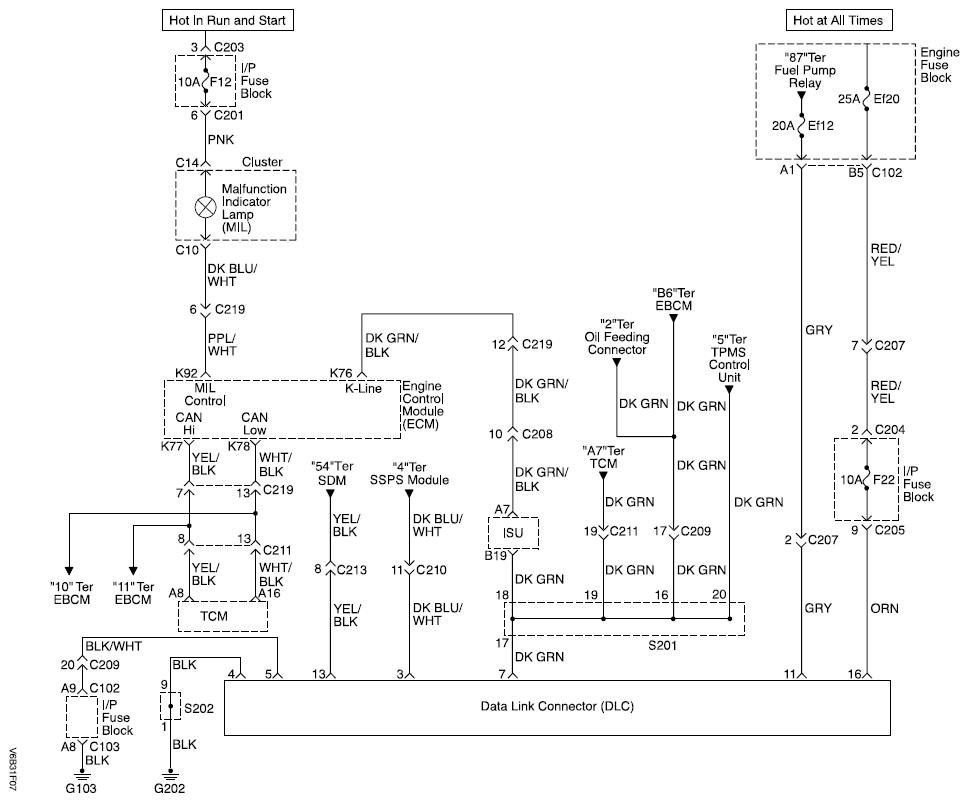

Fig 7: ECM Wiring Diagram (7 Of 7)

G04718610

Courtesy of SUZUKI OF AMERICA CORP.
