Ignition System Check: Notes

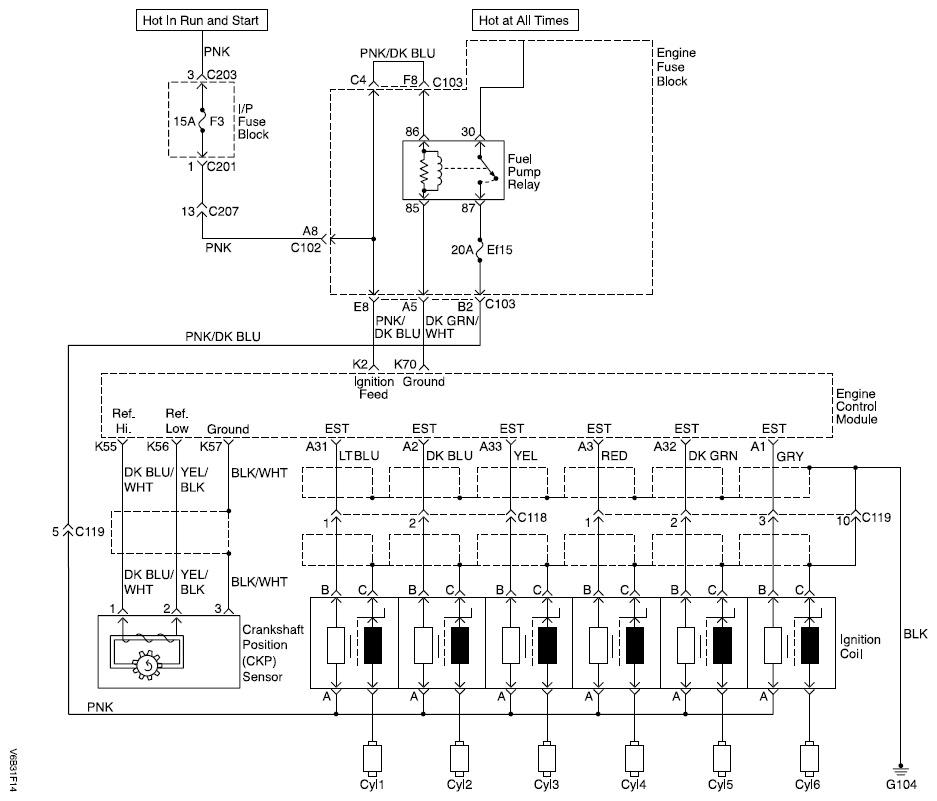

Fig 1: Ignition System Check - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
