Main Relay Circuit Check: Notes

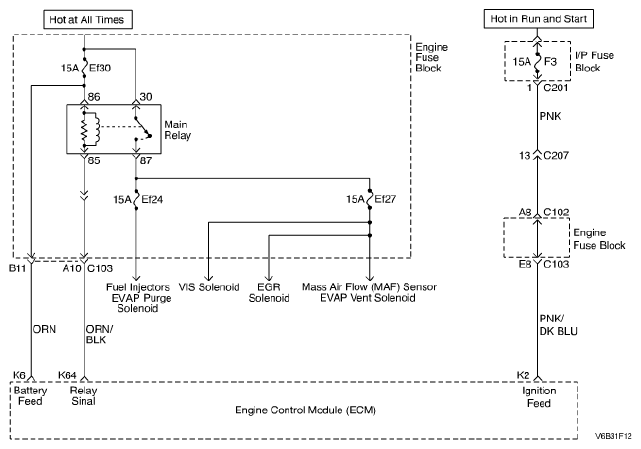

Fig 1: Main Relay Circuit Check - Wiring Diagram

G04718758

Courtesy of SUZUKI OF AMERICA CORP.
