Manifold Absolute Pressure Check: Notes

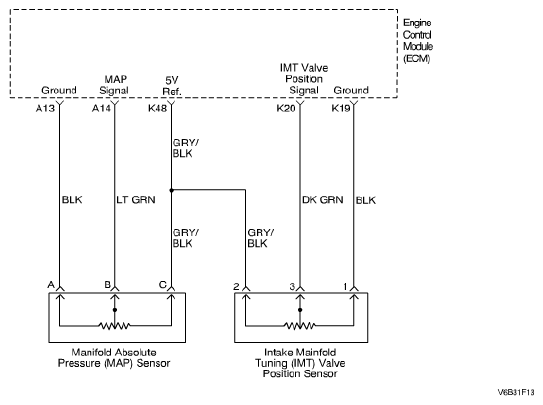

Fig 1: Manifold Absolute Pressure Check - Wiring Diagram

G04718651

Courtesy of SUZUKI OF AMERICA CORP.
