Engine Control Module (ECM) Removal

  1. Remove the battery.
  2. Remove the ECM bracket nuts.

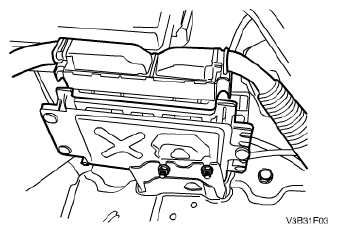

    Fig 1: Identifying ECM Bracket Nuts
    G04718813Courtesy of SUZUKI OF AMERICA CORP.
  3. Disconnect the ECM connector.
  4. Remove the ECM retaining nuts and the ECM.

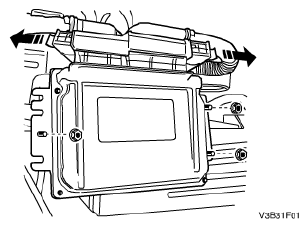

    Fig 2: Removing ECM Retaining Nuts And ECM Connectors
    G04718814Courtesy of SUZUKI OF AMERICA CORP.
