Engine Coolant Temperature Sensor Removal

Relieve the pressure in the coolant reservoir by turning the coolant reservoir cap slightly counterclockwise.
Disconnect the negative battery cable.

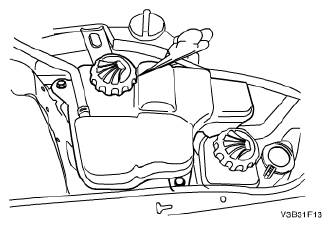

Fig 1: Identifying Coolant Reservoir Cap
Courtesy of SUZUKI OF AMERICA CORP.
Remove the VIS vacuum tank. Refer to VIS Vacuum Tank Removal Z.

Fig 2: Identifying VIS Vacuum Tank
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the engine coolant temperature sensor (ECTS) connector.
Remove the ECTS from the cylinder head.

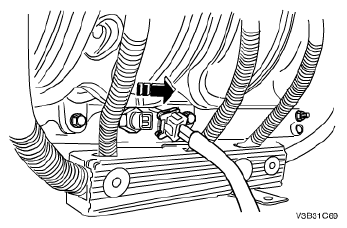

Fig 3: Disconnecting Engine Coolant Temperature Sensor (ECTS) Connector
Courtesy of SUZUKI OF AMERICA CORP.
