Intake Air Temperature (IAT) Sensor Installation

  1. Installation should follow the removal procedure in the reverse order.
  2. Install the IAT sensor.

    Tighten:

    Tighten the intake air temperature (IAT) sensor to 20 - 30 N.m (15 - 22 lb-ft).

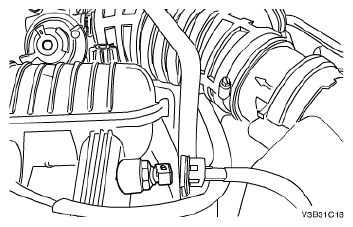

    Fig 1: Identifying IAT Sensor And Connector
    G04718825Courtesy of SUZUKI OF AMERICA CORP.
