Knock Sensor Removal

  1. Disconnect the negative battery cable.
  2. Remove the VIS vacuum tank. Refer to VIS Vacuum Tank Removal .

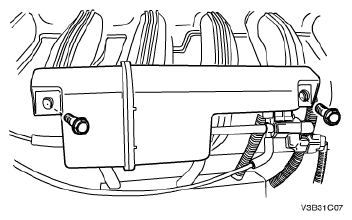

    Fig 1: Removing/Installing VIS Vacuum Tank Bolt
    G04718818Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the wiring harness from the wiring support bracket.

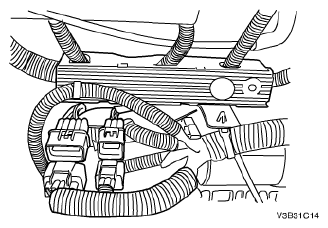

    Fig 2: Disconnecting Wiring Harness From Wiring Support Bracket
    G04718829Courtesy of SUZUKI OF AMERICA CORP.
  4. Disconnect the knock sensor wiring harness connector.
  5. Remove the knock sensor.

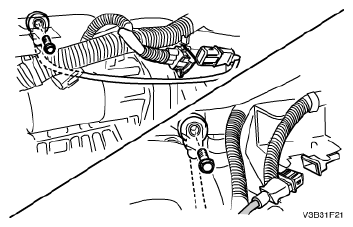

    Fig 3: Disconnecting Knock Sensor Wiring Harness Connector
    G04718830Courtesy of SUZUKI OF AMERICA CORP.
