VIS Valve Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the vacuum hose from the VIS actuator.
  3. Remove the VIS actuator and the VIS valve.
    NOTE: Make sure the VIS valve flap is closed before removing the VIS valve.

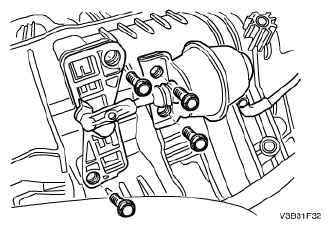

    Fig 1: Removing/Installing VIS Actuator, Valve And Retaining Bolts
    G04718843Courtesy of SUZUKI OF AMERICA CORP.
