Generator Components

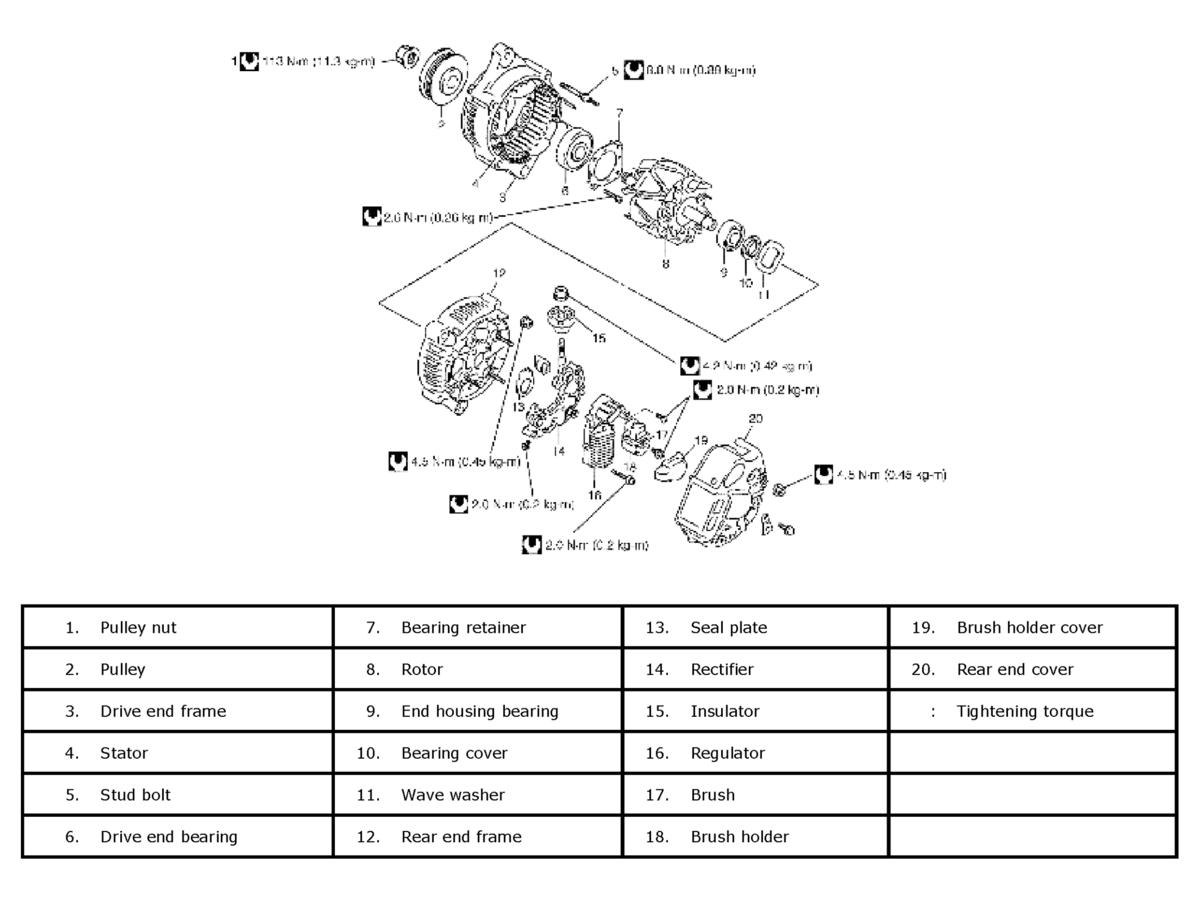

Fig 1: Identifying Generator Components (With Tightening Torques)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
