Identification for ORVR System Equipped Vehicle

Confirm left side of rear floor side member (2). If vehicle is equipped with EVAP canister air suction filter (1) which is installed in under of rear floor side member, the vehicle has ORVR system.

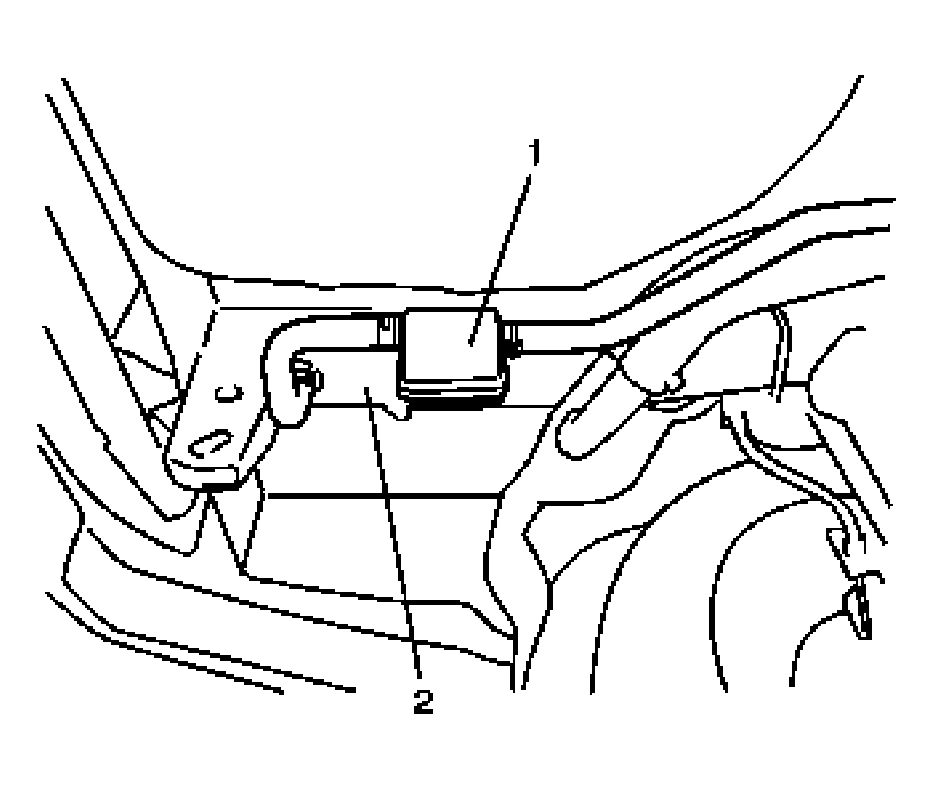

Fig 1: Identifying Left Side Of Rear Floor Side Member And EVAP Canister Air Suction Filter

Courtesy of SUZUKI OF AMERICA CORP.
