Spark Plug Removal and Installation: Installation

Reference: SPARK PLUG INSPECTION

1. Install spark plug (2) and tighten them to specified torque.

   Tightening torque

   Spark plug a: 25 N.m (2.5 kg-m, 18.0 lb-ft)

2. Install ignition coil (1) referring to IGNITION COIL ASSEMBLY (IGNITER AND IGNITION COIL) REMOVAL AND INSTALLATION .

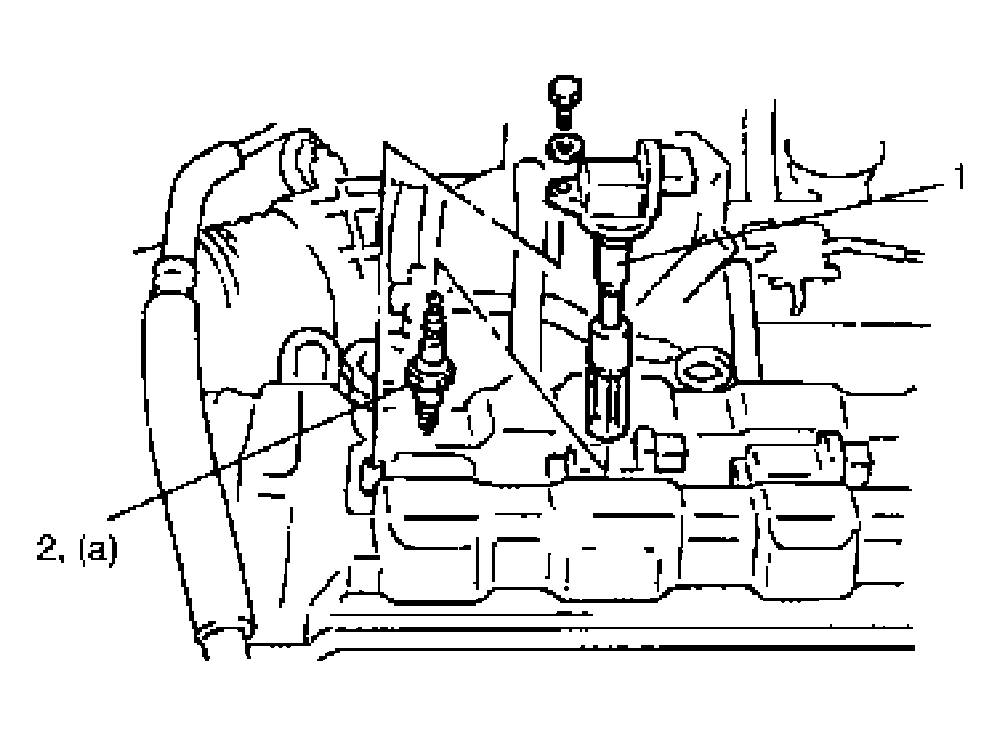

   Fig 1: Installing Spark Plug And Ignition Coil

   Courtesy of SUZUKI OF AMERICA CORP.
3. Install engine cover to cylinder head cover referring to ENGINE COVER REMOVAL AND INSTALLATION .
