Engine Control Module (ECM) Removal and Installation: Removal

  1. Disconnect battery negative cable at battery.
  2. Disable air bag system, refer to AIR BAG SYSTEM -- AERIO .
  3. Remover glove box, referring to Step 5) of INSTRUMENT PANEL REMOVAL AND INSTALLATION .
  4. Disconnect connectors (1) from ECM while releasing connectors lock.
  5. Remove ECM from body after removing its nuts (2).
    NOTE: Be careful not to damage ventilation duct.

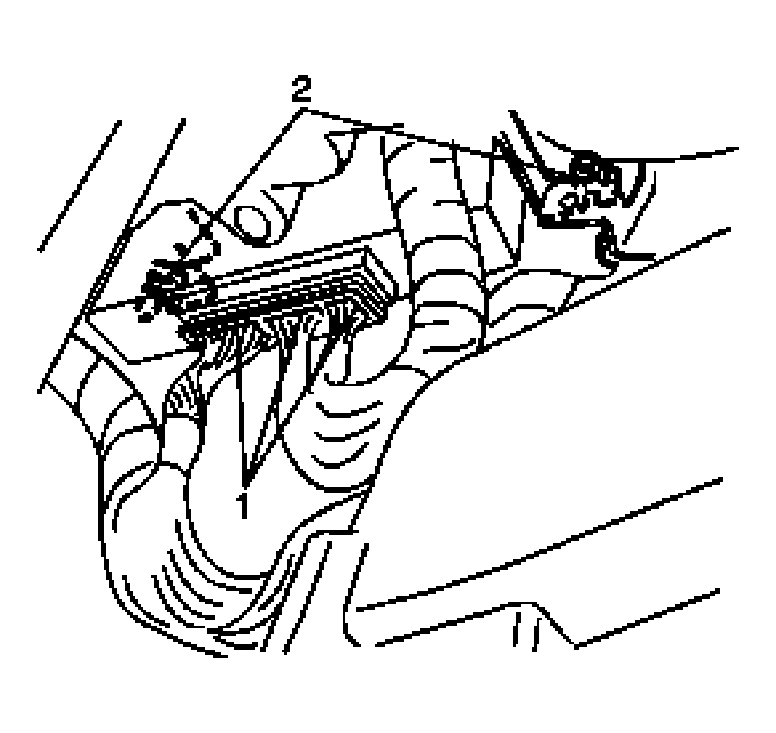

    Fig 1: Disconnecting Connectors From ECM
    G04589650Courtesy of SUZUKI OF AMERICA CORP.
