Engine Coolant Temperature (ECT) Sensor Removal and Installation: Installation

Reference: ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION

Reverse removal procedure noting the following.

• Clean mating surfaces of sensor and water outlet cap.
• Tighten ECT sensor (1) to specified torque.

  Tightening torque

  ECT sensor a: 13 N.m (1.3 kg-m, 9.5 lb-ft)

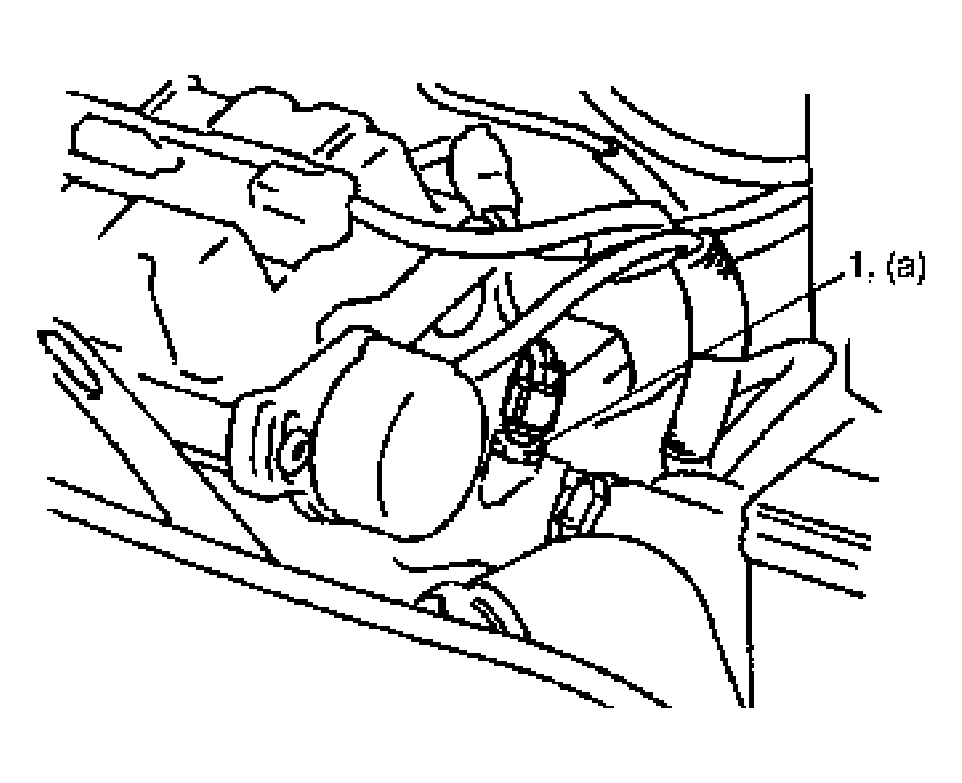

  Fig 1: Tightening ECT Sensor

  Courtesy of SUZUKI OF AMERICA CORP.
• Connect connector to sensor securely.
• Refill cooling system.
