Throttle Position (TP) Sensor Removal and Installation: Installation

Install TP sensor (1) to throttle body (2).
Fit TP sensor (1) to throttle body (2) in such way that its holes are a little away from TP sensor screw holes as shown in the figure and turn TP sensor (1) clockwise so that those holes align.
Tighten TP sensor screw to specified torque.
Tightening torque

TP sensor screw a: 2.5 N.m (0.25 kg-m, 1.8 lb-ft)

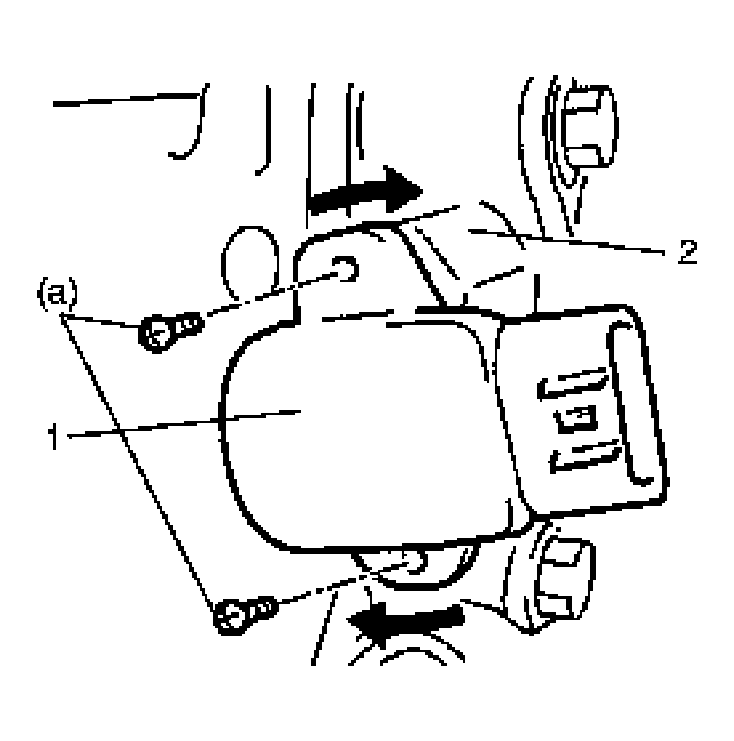

Fig 1: Installing TP Sensor To Throttle Body
Courtesy of SUZUKI OF AMERICA CORP.
Connect coupler to TP sensor securely.
Connect battery negative cable to battery.
