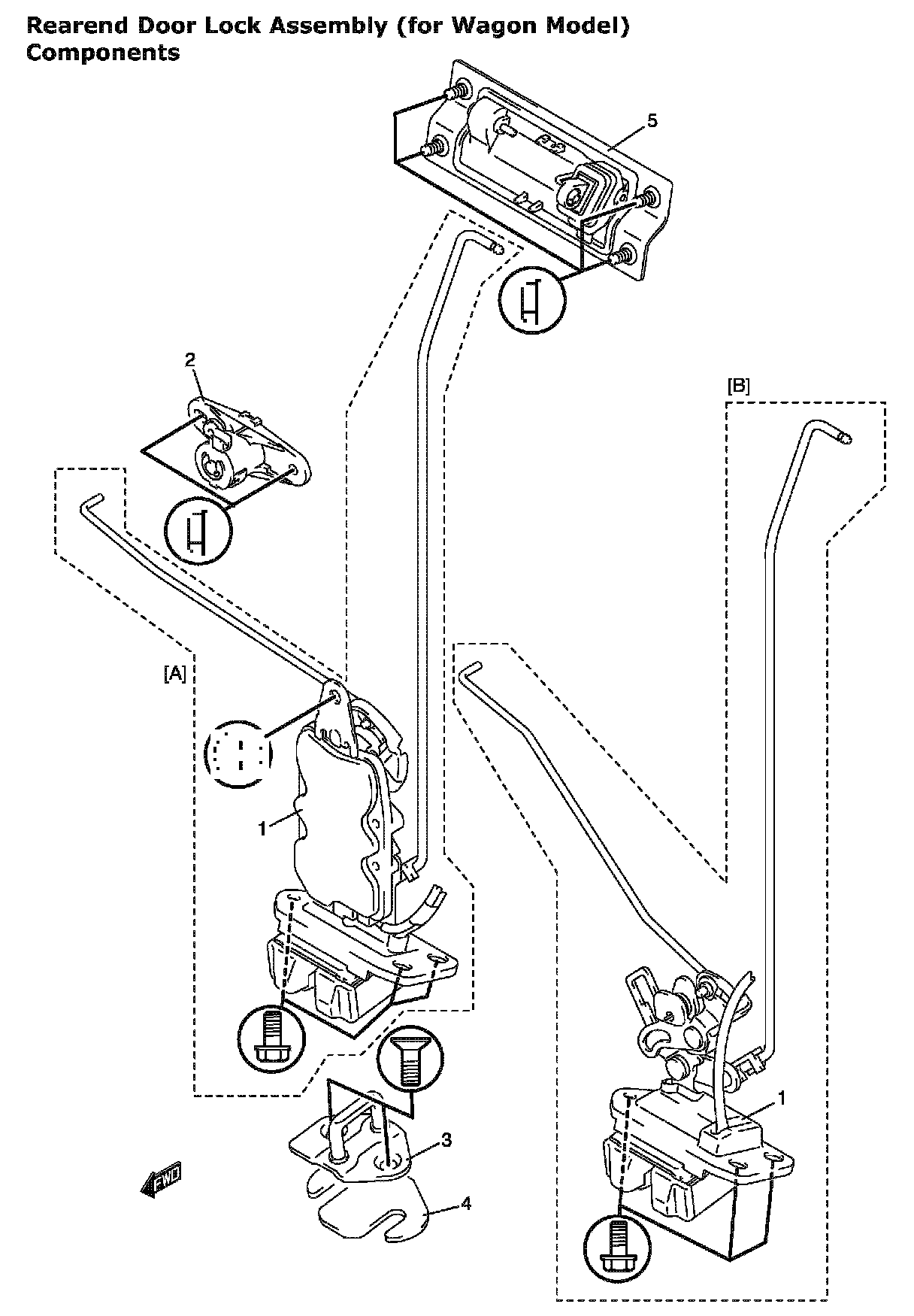

Rearend Door Lock Assembly (For Wagon Model) Components

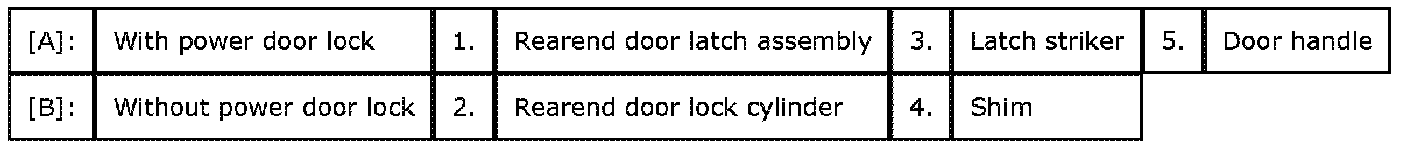

Rearend Door Lock Assembly (For Wagon Model) Components Part 1:



Rearend Door Lock Assembly (For Wagon Model) Components Part 2:
