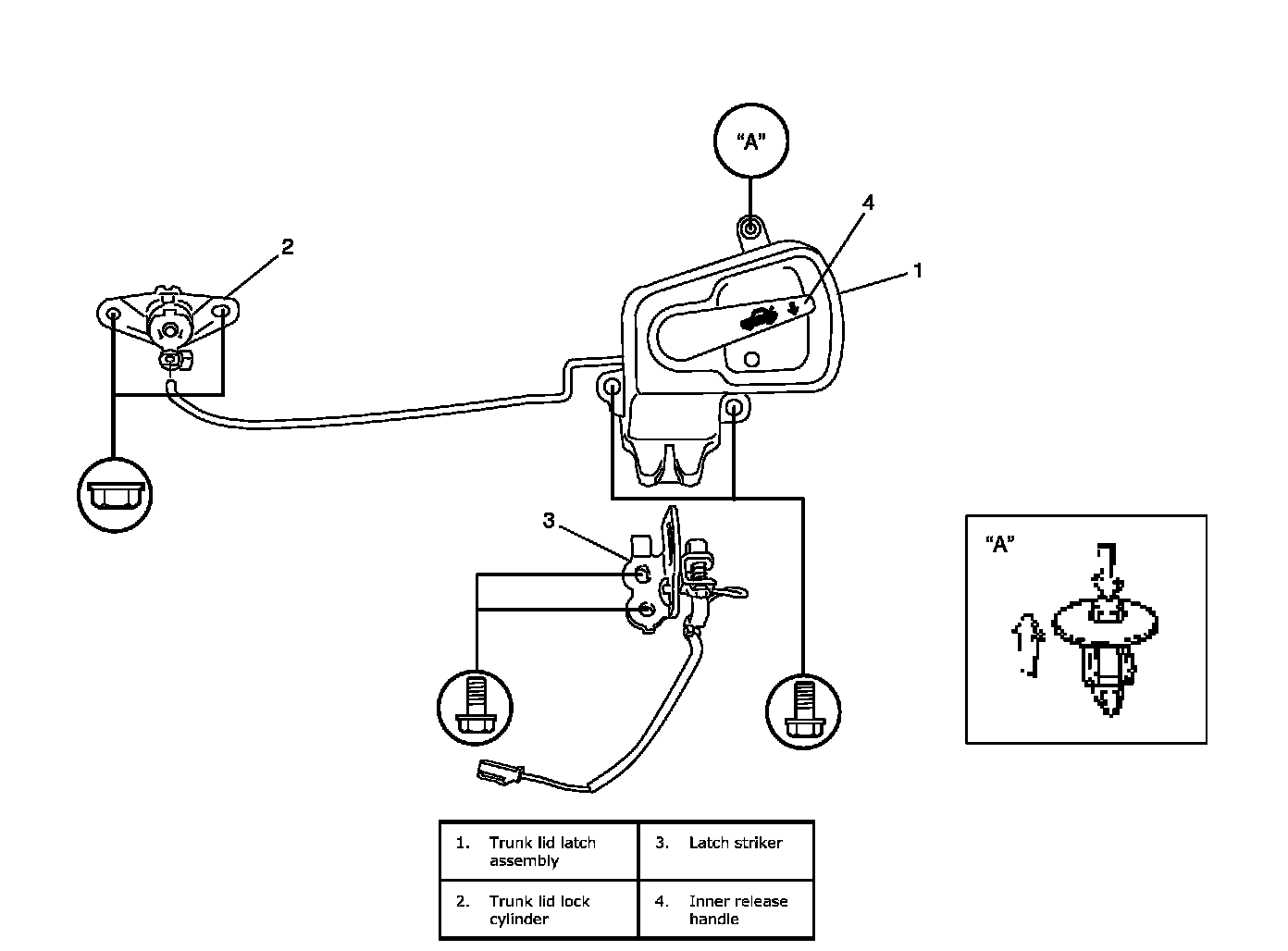

Trunk Lid Lock Assembly (For Sedan Model) Components

Trunk Lid Lock Assembly (for Sedan Model) Components:
