A/C Signal Circuits Inspection

A/C Signal Circuits Check (Vehicle With A/C)

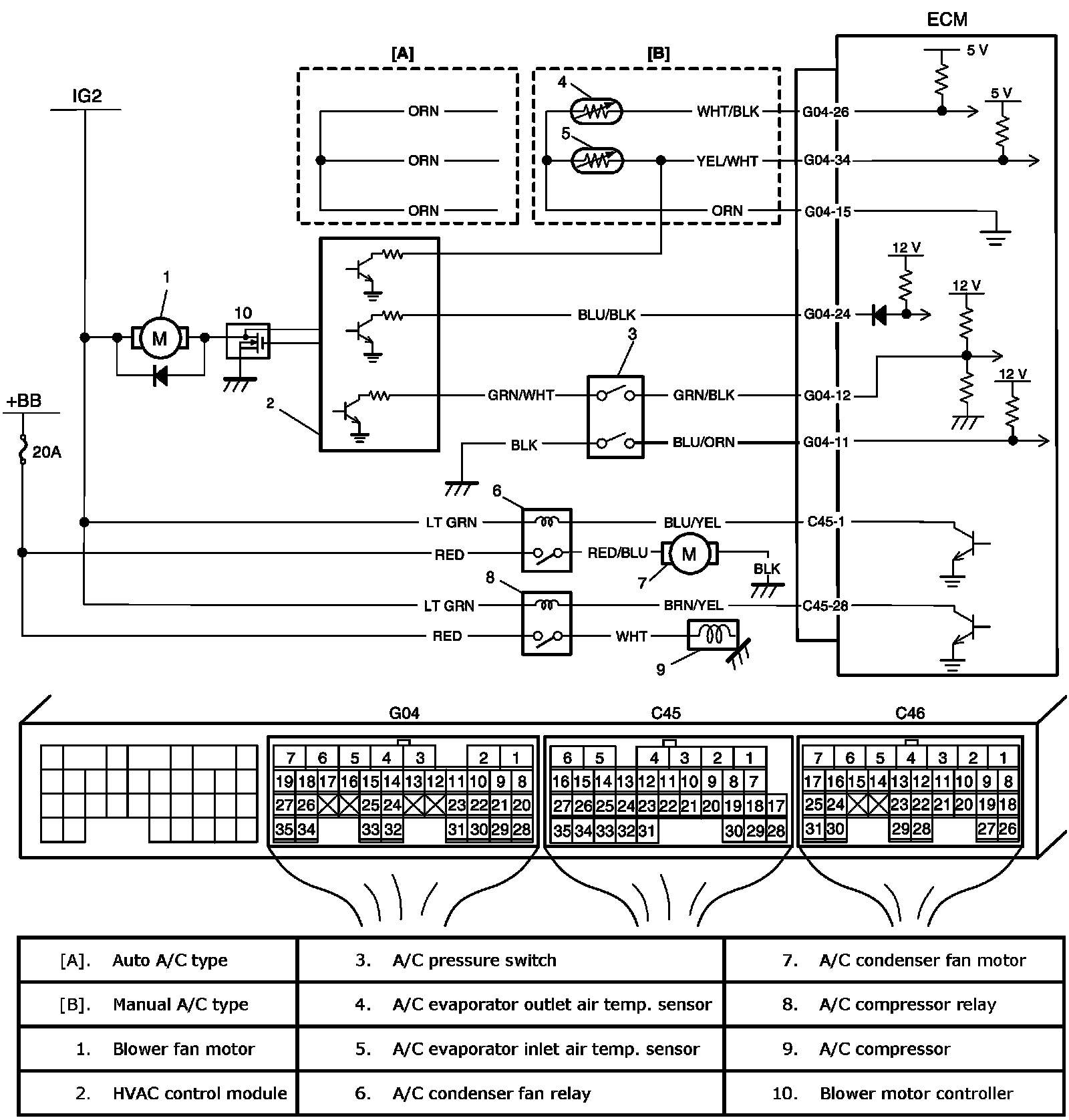

Wiring Diagram:

Wiring Diagram

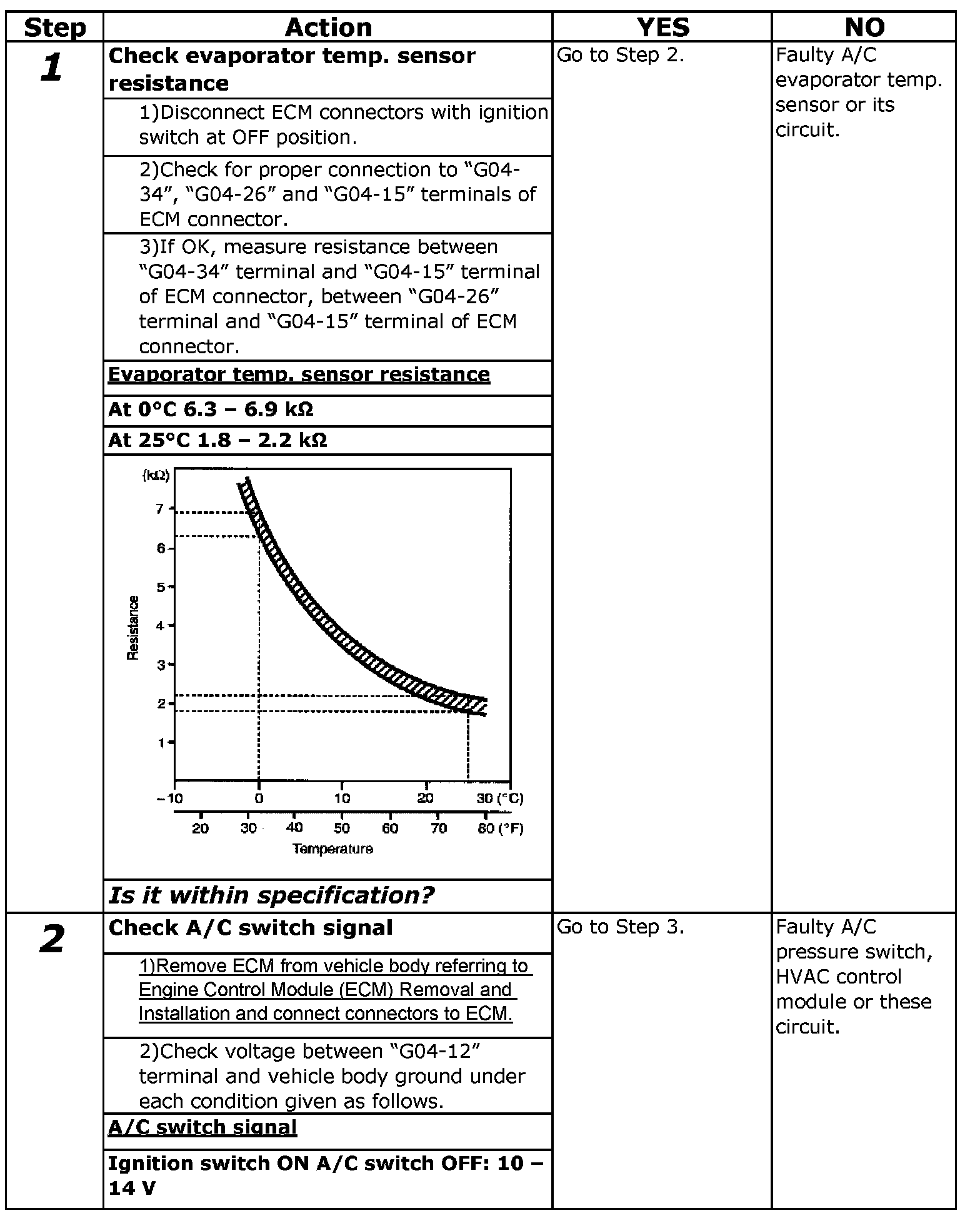

Step 1-2:

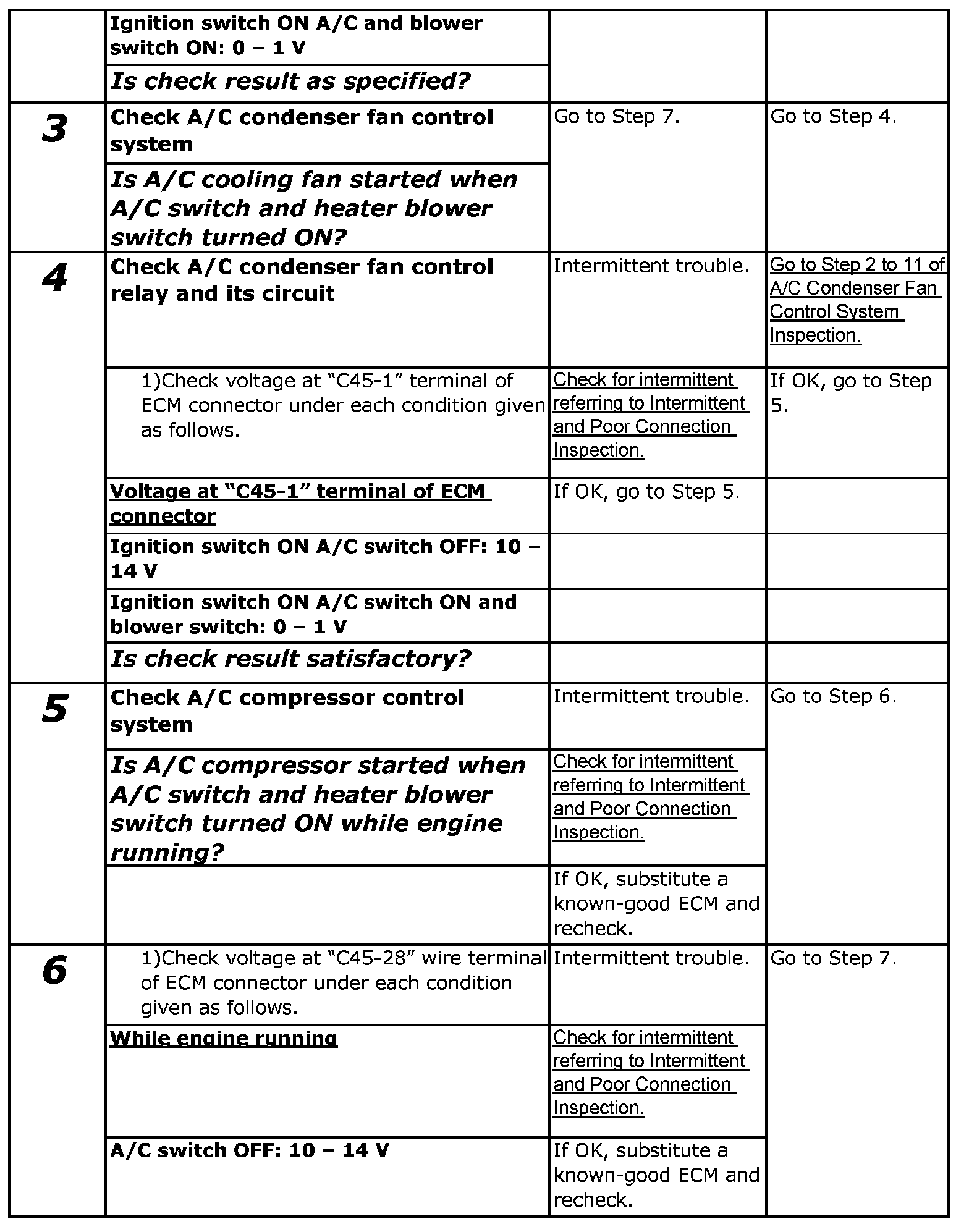

Step 2(Continued)-6:

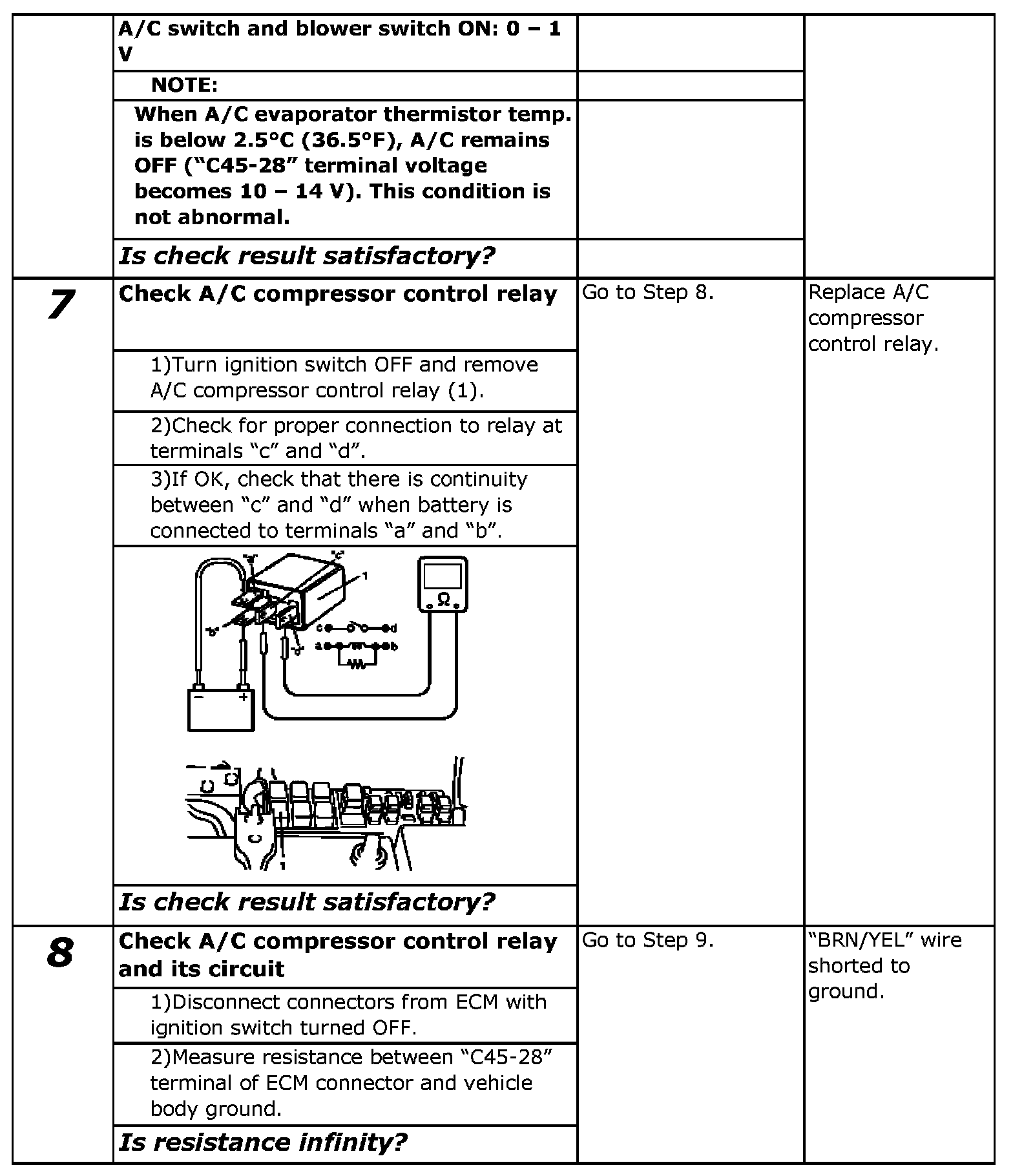

Step 6(Continued)-8:

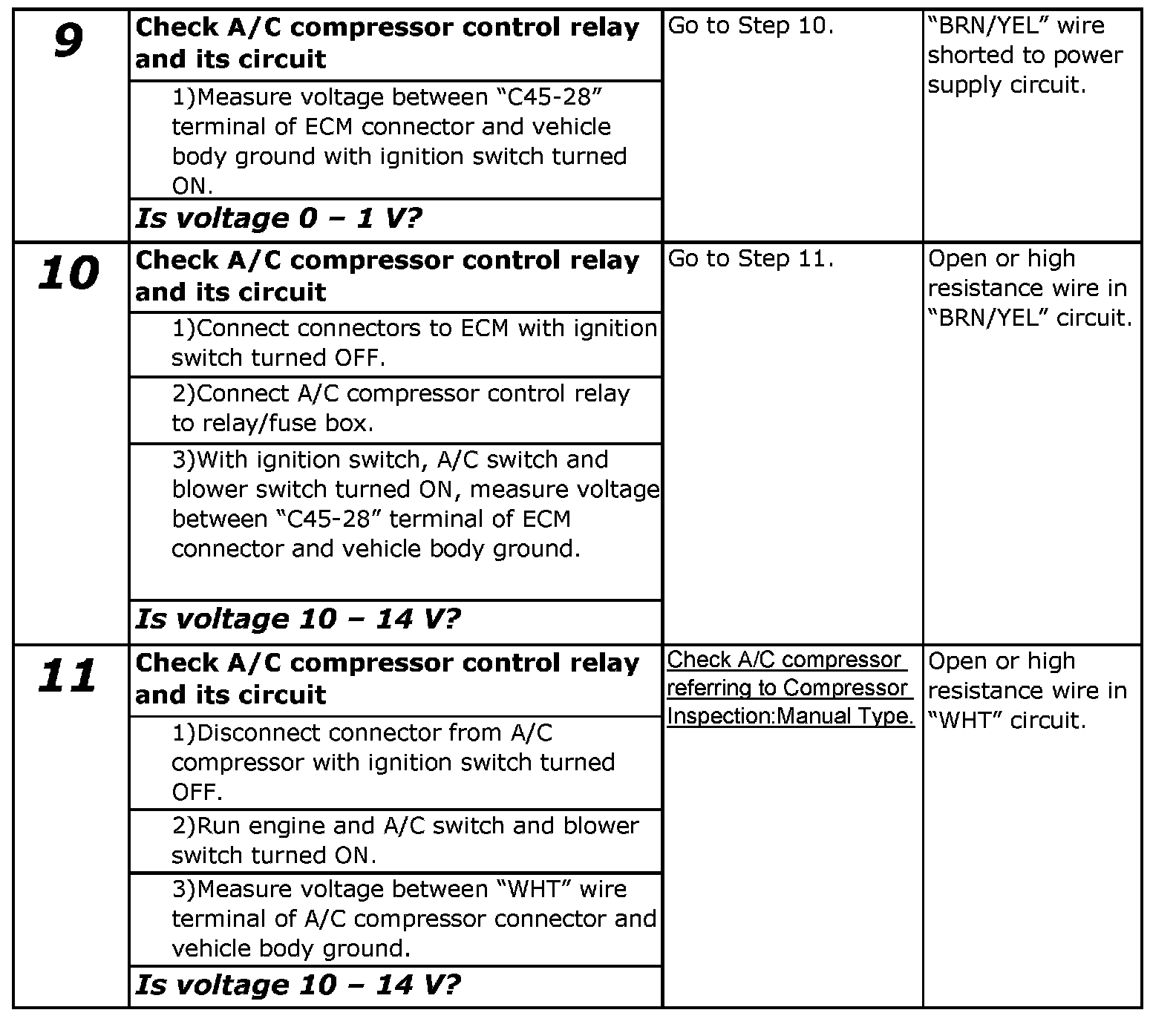

Step 9-11:

Troubleshooting
