Automatic Gear Shift Table (For 4WD Model)

Automatic Gear Shift Table (for 4WD Model)
Automatic gear shift schedule is shown in the following table. Test-drive the vehicle on a flat road in the D position and normal mode.

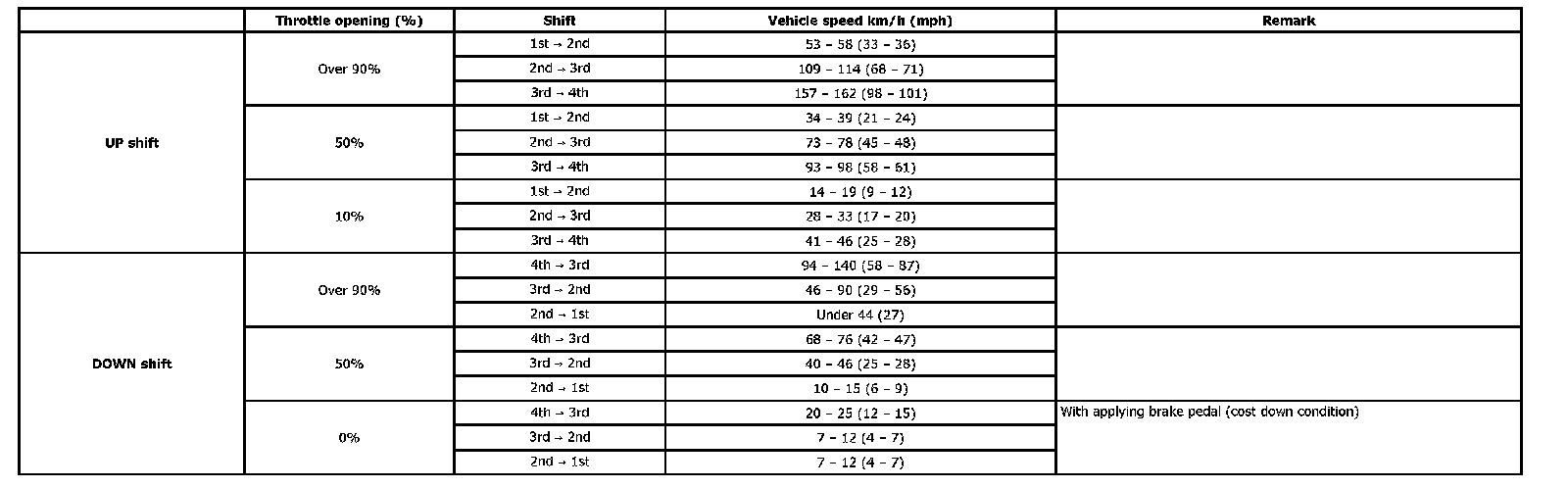

1. Shift Point in D position

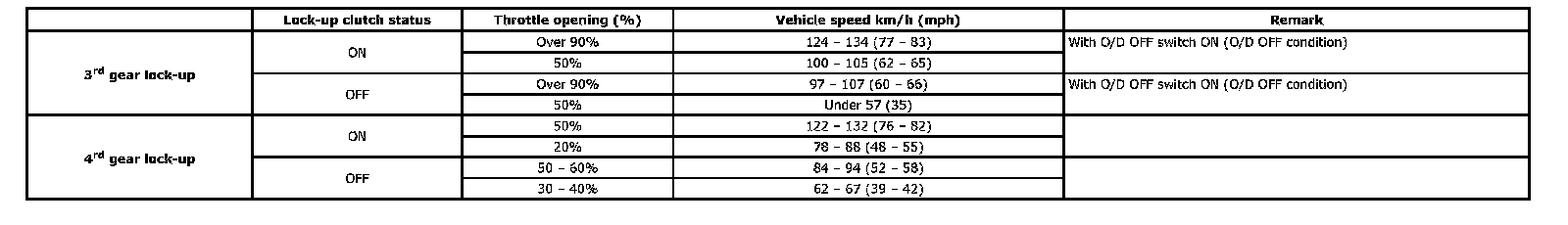

2. Lock-up point in D position
