Ignition Switch: Testing and Inspection

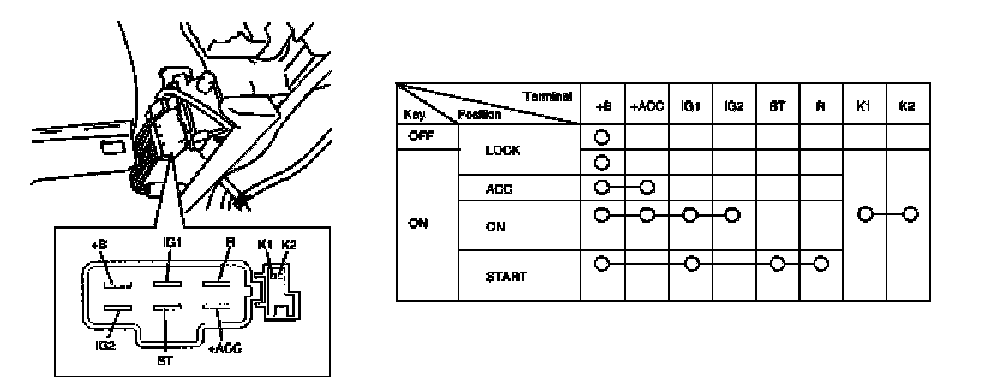

IGNITION SWITCH INSPECTION

Reference: Ignition Switch Removal and Installation




- Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.
