For Hatchback Model

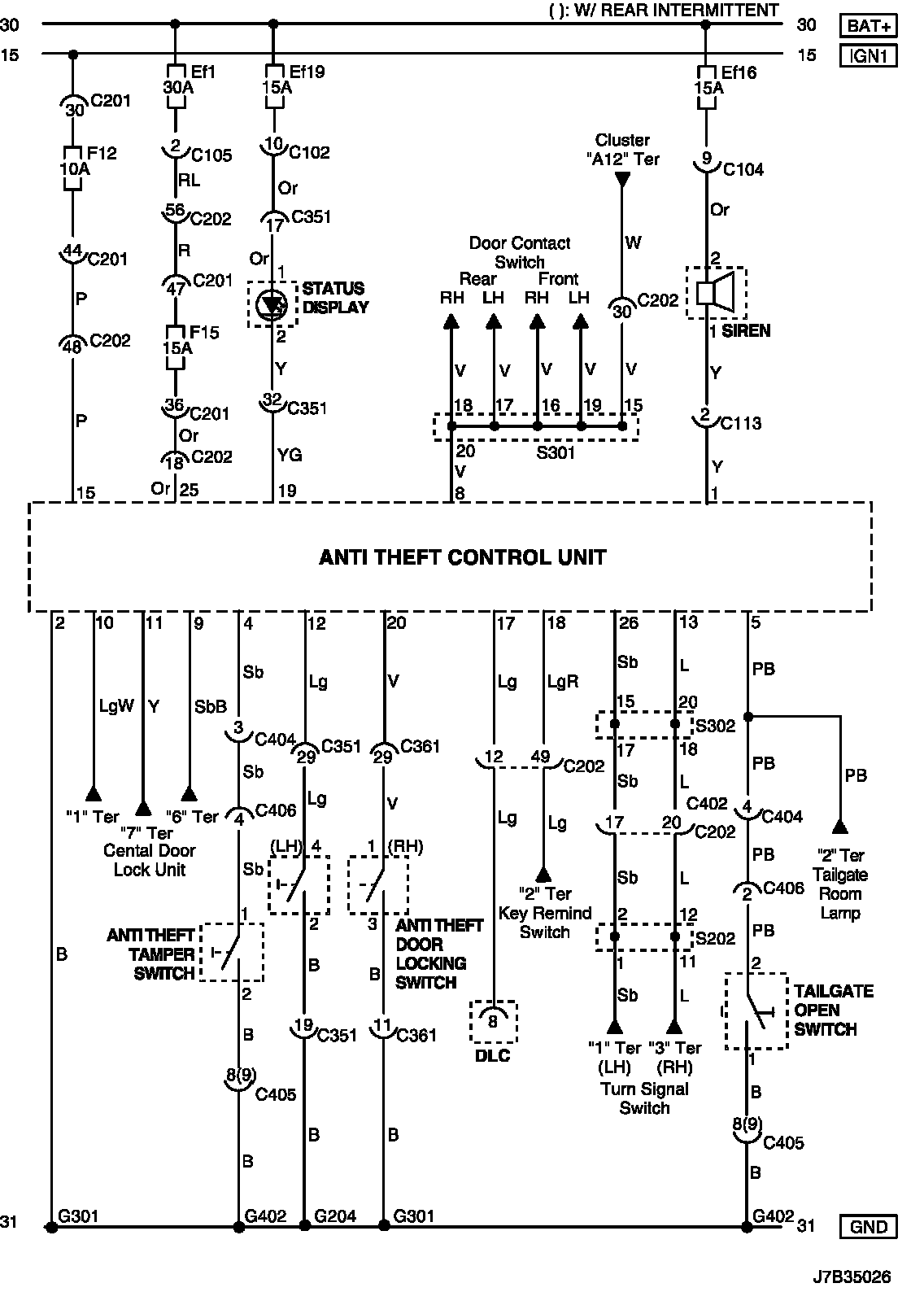

Anti Theft Control System Circuit Wiring Diagram (For HATCHBACK Model):
WIRING DIAGRAM
C102 - G402:

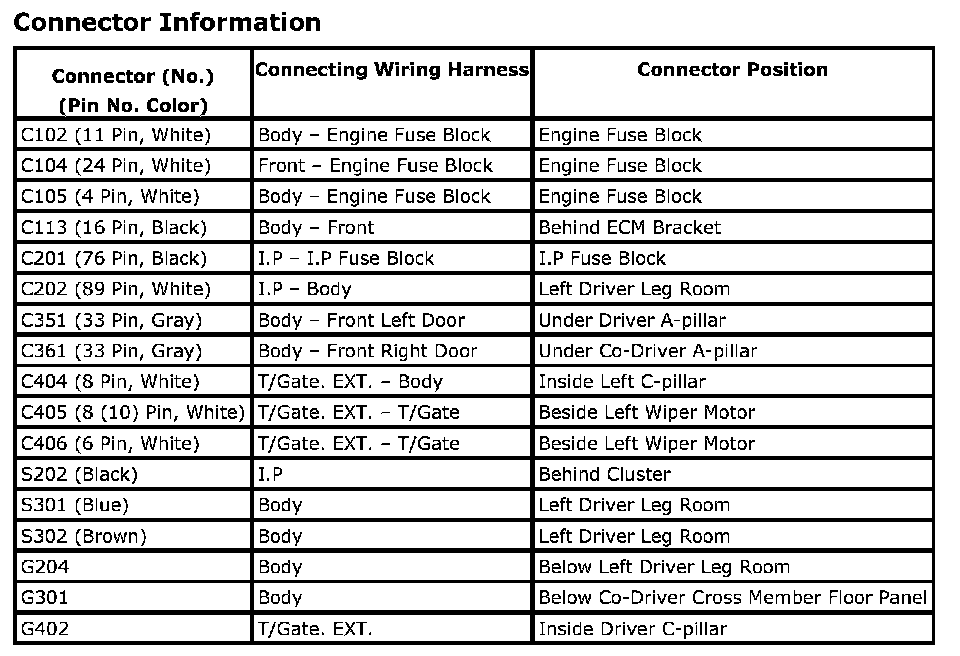

CONNECTOR INFORMATION

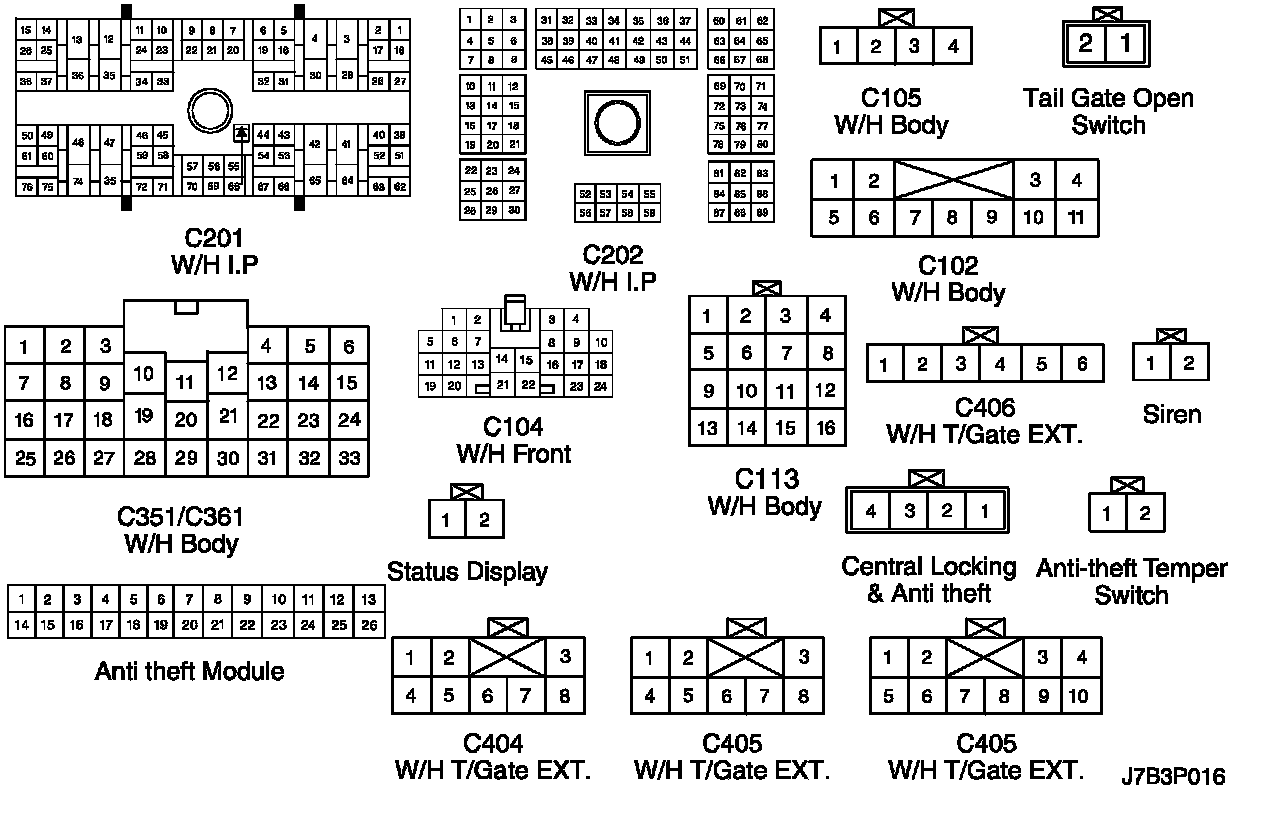

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

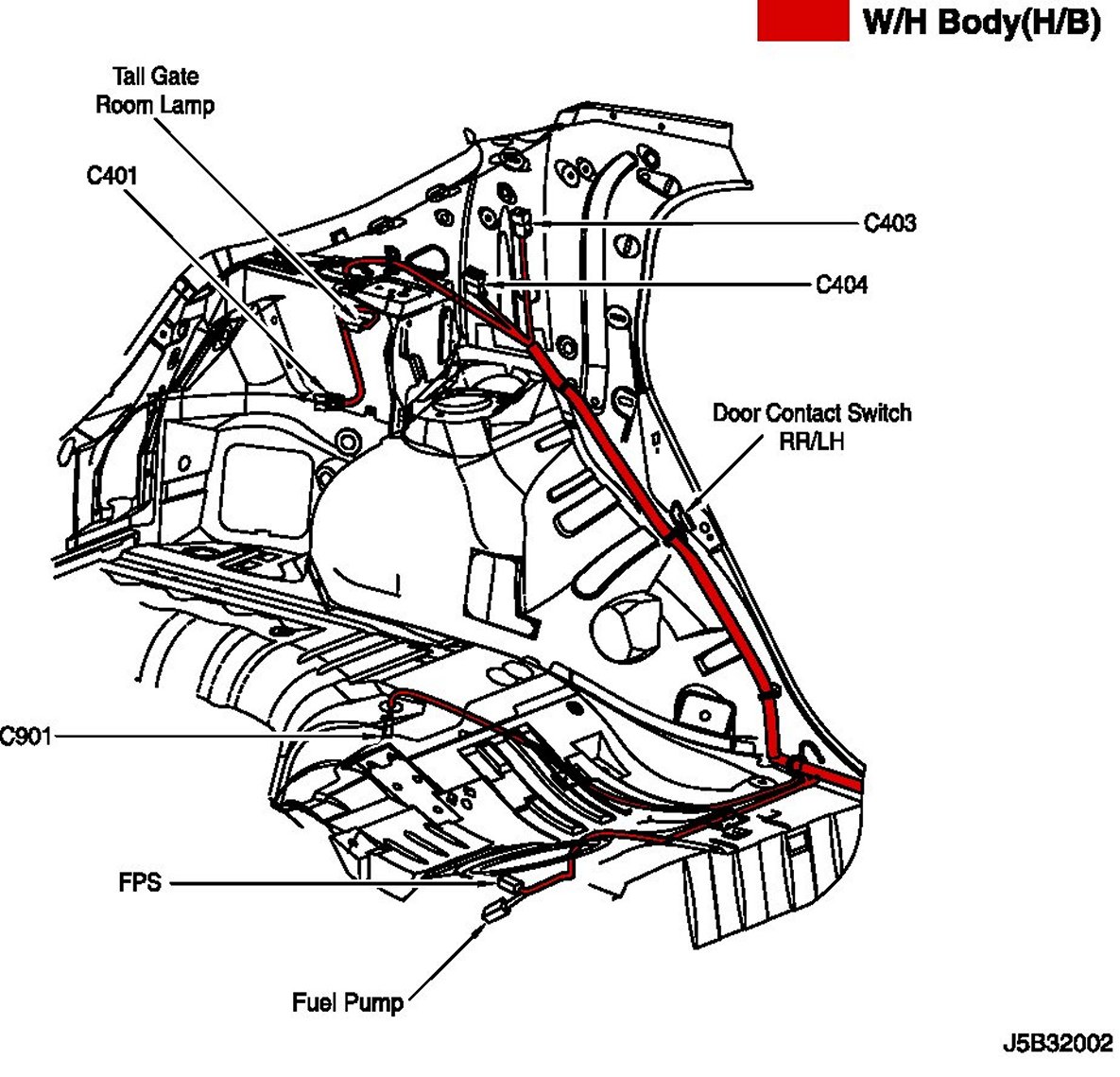

W/H Body:

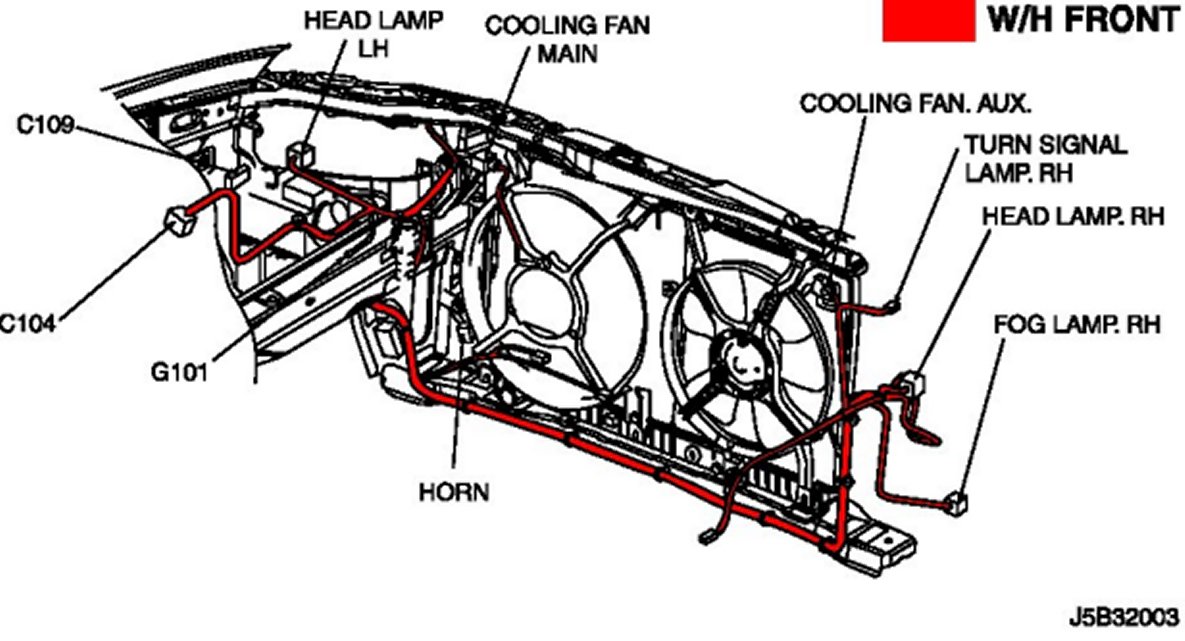

W/H Front:
POSITION OF CONNECTORS AND GROUNDS
S202:
S301 (Hatchback):
S302 (Hatchback):
SPLICE PACK
