Home >> Suzuki >> 2007 >> Forenza L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle >> Gears and Case Components
April 5, 2026: LEMON Manuals is launched! Read the announcement.

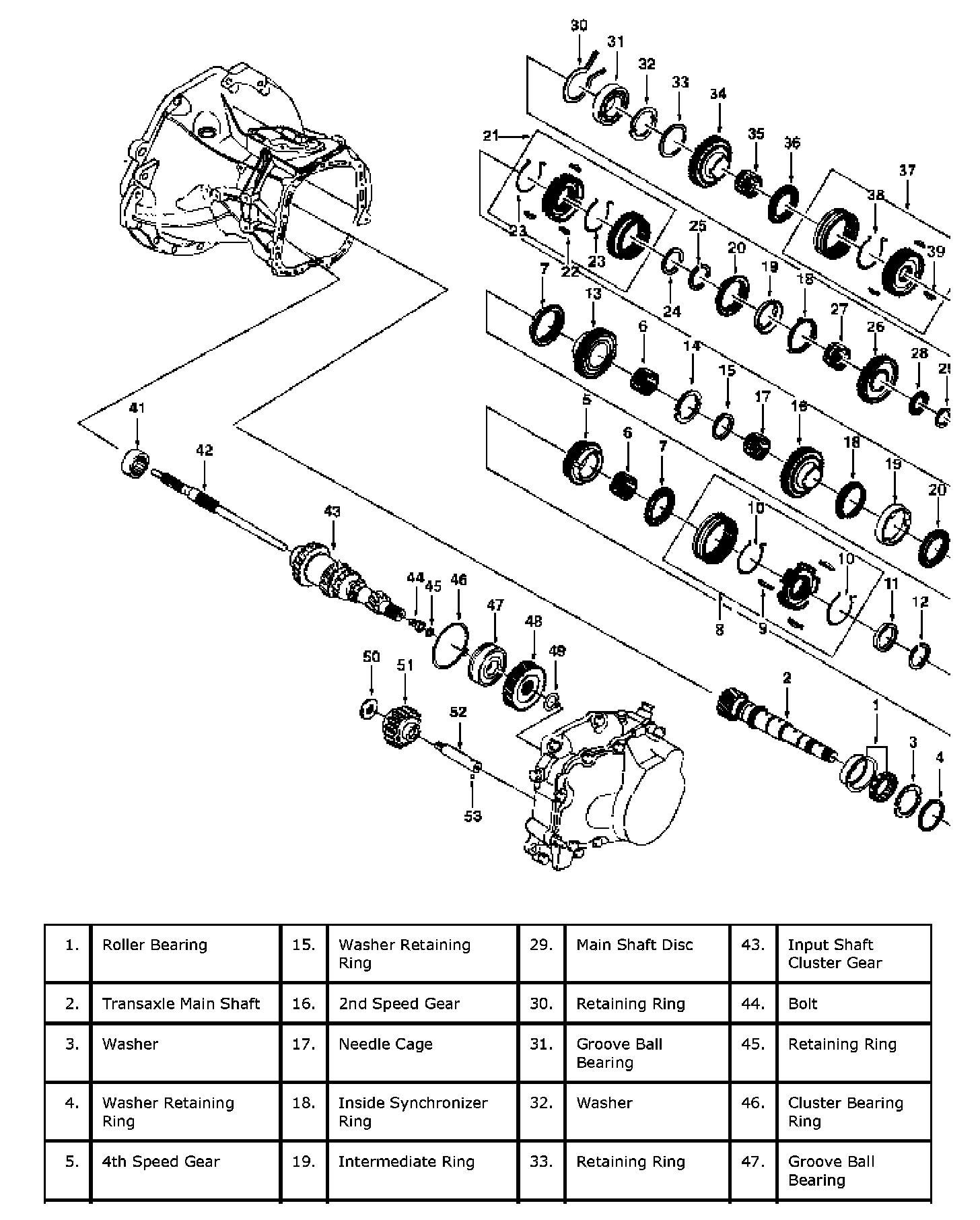

Gears and Case Components

Part 1:



Part 2:
