Control Assembly Knob Lighting

Control Assembly Knob Lighting Removal and Installation

Removal
1. Disconnect the negative battery cable.

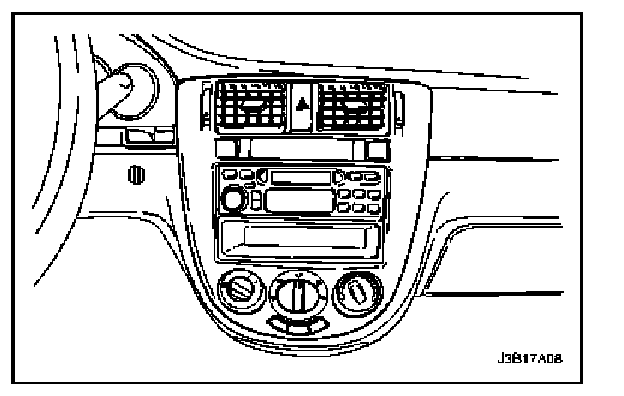

2. Remove the center molding.

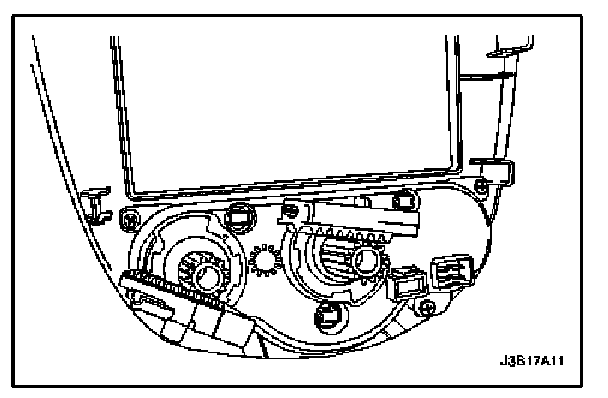

3. Turn the bulb holder to the left and pull out the bulb.

Installation
1. Install the bulb into the holder and turn the bulb to the right.
2. Install the control assembly.
3. Connect the negative battery cable.




4. Check the knob light for proper operation.
